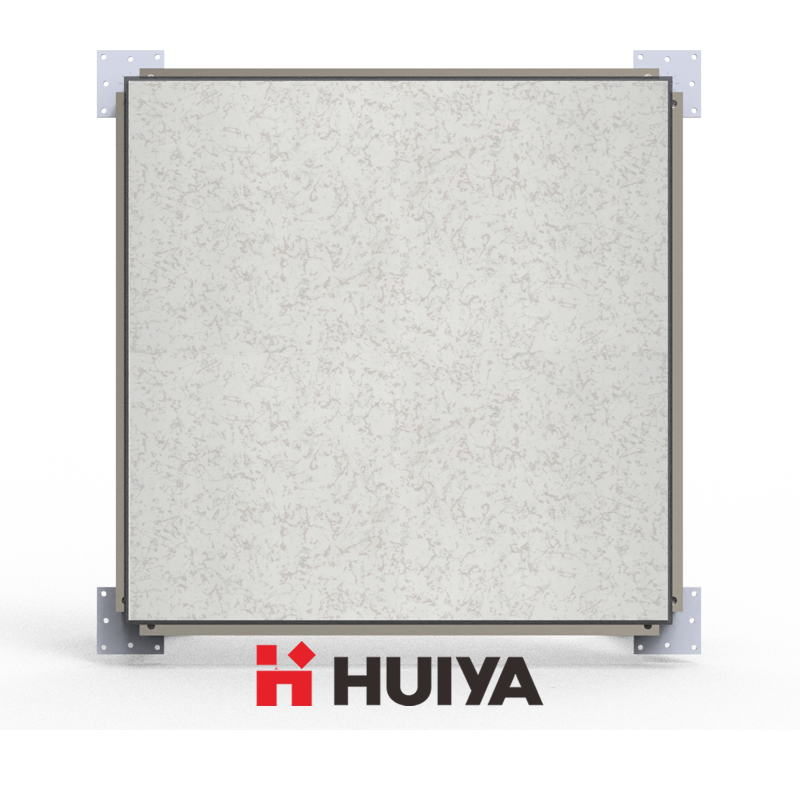

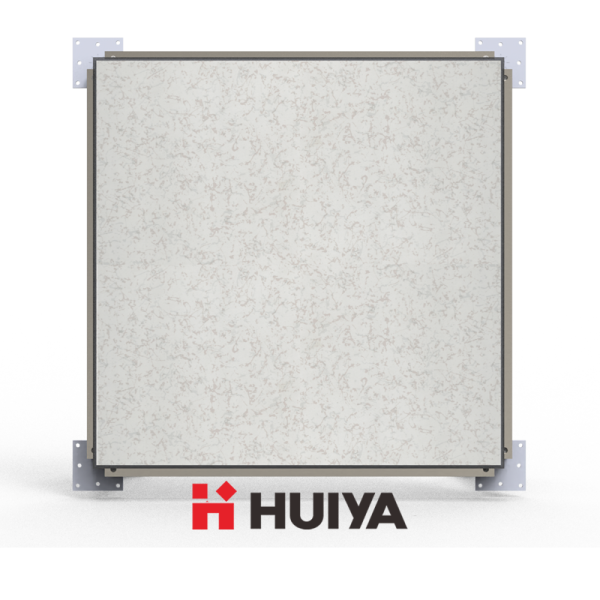

HUIYA.1000LBS.HPL TILE STEEL RAISED FLOOR-DATA CENTER

SYSTEM NAME:
OA600 RAISED FLOOR 3.0KG
DESCRIPTION
OA600 RAISED FLOOR 3.0KG is considered the classic system for commercial environments. It is widely used for office building and data cable management.
SIZE 600mm x 600mm DEPTH 33mm CORE Cementitious Compound

SYSTEM NAME:

OA600 RAISED FLOOR 3.0KG

 DESCRIPTION

OA600 RAISED FLOOR 3.0KG is considered the classic system for commercial environments. It is widely used for office building and data cable management.

COMPLIANT STANDARDS

CISCA Recommended Test Procedures for Access Floors (2007)

SIZE 600mm x 600mm

DEPTH 33mm

CORE Cementitious Compound

FINISH

Standard powder coated finish.

CONSTRUCTION

The panels consist of a hardened steel top and bottom sheet plate with corrosion resistant protection, inside and out,encapsulating a structural cementitious core.

TOLERANCE

±0.25mm and a flatness tolerance of  ±0.5

TOLERANCE

±0.25mm and a flatness tolerance of  ±0.5mm measured on a diagonal across the top of the panel

CONNECTION

The panel is screw fixed to the pedestal head at all four corners.





STANDARD CISCA 2007

PERFORMANCE TO STANDARD GUILD PER CISCA Recommended Test Procedures for Access Floors (2007)

LOAD LEVELPANEL(KG)SYSTEM(KG/m2 at 150mm FFH)
800LBS13.540.9
STATIC PERFORMANCE(KN)
CONCENTRATED
LOAD
IMPACT LOADUltimate Load
3.50.68.8
DYNAMIC PERFORMANCE(KN)-Passes
10 passes
(Wheel Size 75x25mm)
10000passes
(wheel size150x50mm)
40000 passes
(Wheel sizw 200x75mm)
2.62.62.25
*All tests are performed using CISCA Recommended Test Procedures for Access Floors
1:Concentrated Load is based on permanent set 0.010” and is verified by loading panels in accordance with the CISCA concentrated load method but with panels installed on actual understructure instead of steel blocks.
2:Safety Factor is Ultimate Load divided by Design Load. The Concrete Panel has a Safety factor of 1.5

PEDESTAL SIZE 85×85 base plate

PEDESTAL CONSTRUCTION

Cold dipped galvanised steel pedestal base,head and rod.Aluminum head assembly.



PEDESTAL LOCKING

The pedestal will be provides with an adjusting and locking nut to maintain the assembly at a selected height,which requires a deliberate action to change the height setting,and which prevents vibration displacement.

PEDESTAL FINISH

Cold dipped galvanized finish



PEDESTAL CONNECTION

The panel is screw fixed to the pedestal head at all four corners.



PEDESTAL FINISHED FLOOR HEIGHT (FFH)

The finished floor height of the access floor is measured from the sub floor to the top surface of the installed access floor.



Pedestal is plated with zinc in Bottom Steel Plate and cast aluminum alloy, whose height is adjustable and can be self-locked.

Floor Finish Height From60mm-150mm, Huiya Raised floor Factory Recommend Low-Profile Finish Height Pedestal(Includes Cross Head Aluminum Raised floor Pedestal in the Center and Flat galvanized Steel Head in the edge.) As Usual, FFH 60-150mm is widely used in different office Applications.

Pedestal NameAluminum Cross Head Pedestal (Low Profile Type)
HeightFFH60-300mm
Pedestal Head70(Length)x70(Width)x20mm(height)Aluminum Die Cast
Base Plate80(Length)x80(Width)x1.8mm(thickness)Steel Plate
Threaded Solid RodM16
SurfaceGalvanized Steel
Pedestal GasketBlack Plastic Gasket
Pedestal NameSteel Flat Head Pedestal(Low Profile Type)
Height FFH60-300mm
Pedestal Head70(Length)x70(Width)x3mm(thickness)Steel Plate
Base Plate80(Length)x80(Width)x1.8mm(thickness)Steel Plate
Threaded Solid RodM16
SurfaceGalvanized Steel

If Customer need Specialized Raised Floor Pedestal,Floor Finish Height(FFH=300mm-600mm), Huiya Raised Floor Factory Recommend Two Different Raised Floor Understructure Method.You can use Tube Structure with Aluminum Head or Tube with Steel Plate with Bolted Structure.

Pedestal NameSteel Flat Head Pedestal(Low Profile Type)
Height FFH60-300mm
Pedestal Head70(Length)x70(Width)x3mm(thickness)Steel Plate
Base Plate80(Length)x80(Width)x1.8mm(thickness)Steel Plate
Threaded Solid RodM16
SurfaceGalvanized Steel
Pedestal NameSteel Flat Head Pedestal(Low Profile Type)
Height FFH60-300mm
Pedestal Head70(Length)x70(Width)x3mm(thickness)Steel Plate
Base Plate80(Length)x80(Width)x1.8mm(thickness)Steel Plate
Threaded Solid RodM16
SurfaceGalvanized Steel
