The customized ventilation floor used in the construction of modern intelligent ship engine rooms and control rooms is specifically designed to meet the high-density equipment cooling and airflow organization needs of ship control rooms, balancing structural strength and ventilation efficiency. It can meet the stringent requirements of the shipbuilding industry for load-bearing capacity, fire resistance, and electromagnetic shielding. It can withstand the dynamic loads generated by heavy mobile intelligent robots moving and operating on the floor surface, ensuring long-term safe and stable operation.

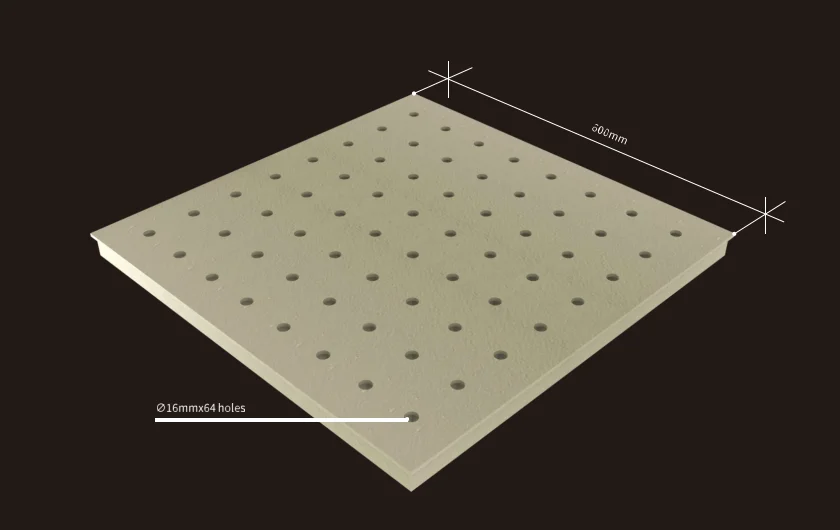

The floor adopts a welded structure consisting of a top steel plate and a bottom cold-rolled square tube. The top plate is made of 5.6mm thick cold-rolled steel, with its surface treated by epoxy resin spraying. The diameter of the perforations is Ø16mm, and there are up to 64 holes on the plate.
Technical Specifications
| Parameter | Detail | Value |
|---|---|---|
| Parameter Configuration | 600mm length × 600mm width × 35.5–36.0mm thickness | 35.5 kg/piece |
| Raw Material – Steel Plate | 600×600mm, 5.6mm thickness | |
| Raw Material – Hole Size | Ø16mm | |
| Raw Material – Number of Holes | 64 holes | |

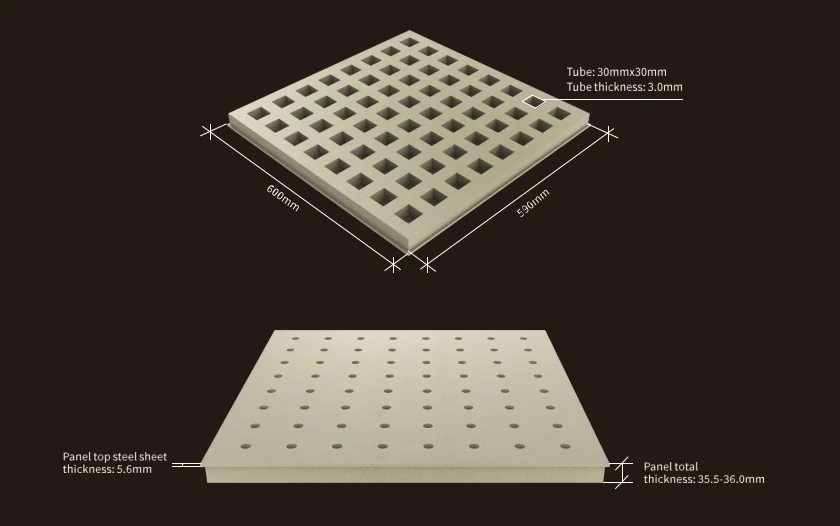

| Bottom Frame – Outer | 30mm width × 30mm height × 3.0mm wall thickness | Cold-rolled square tube |
| Bottom Frame – Inner | 30mm width × 30mm height × 3.0mm wall thickness | Cold-rolled square tube |
Customized Floor Loading Requirements
| Condition | Requirement |
|---|---|
| Condition 1 | Point Load Requirement 2500KG × Safety Factor 1.5 = 3750KG. The load-bearing capacity can be achieved. |
| Condition 2 | The flooring shall not crack or undergo elastic deformation exceeding 3.5mm. |
| Condition 3 | The permanent deformation of the floor after pressure release shall not exceed 2mm. |
Test Results
Point Load Requirement 2500KG × Safety Factor 1.5 = 3750KG — meet the standard.
✅ Condition 1: When subjected to a force of 3750KG, the floor did not break.
✅ Condition 2: Under 3750KG pressure, elastic deformation was 4.0mm (exceeds 3.5mm limit).
✅ Condition 3: After pressure release, permanent deformation is 1.0mm (within 2mm limit).
Fire Resistance
According to the EN13501:2018 classification standard for the burning behavior of building materials and products, this flooring has passed the Bfl-s1 level fire test, indicating that it has a low flame spread rate and smoke production, and produces no burning debris during combustion. It meets the mandatory fire protection requirements of the EU building regulations for flooring materials in public places.
