HUIYA Raised Access Floor Rubber Tile
Rubber flooring material is a high-quality supply chain resource of Huiya, which can be used for bonding and processing the decorative surfaces of Huiya’s all steel raised access floor, calcium sulfate raised access floor, and aluminum raised access floor products.
1
2

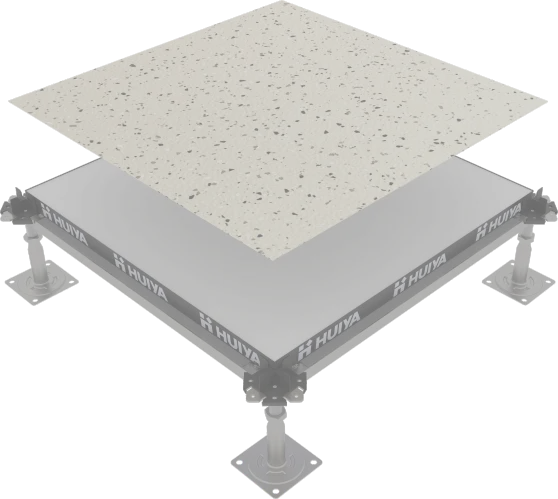

Rubber Flooring
Suitable for surface finishing of calcium sulfate raised floor
Calcium Sulfate Raised Access Floor
1
2

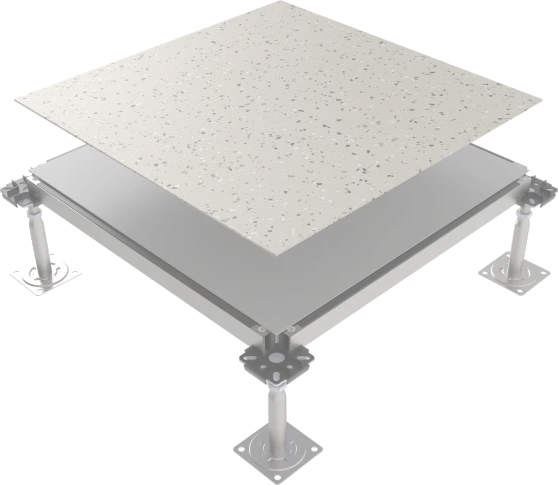

Rubber Flooring
Suitable for all steel raised access floor surface finishing processing
All Steel Raised Access Floor
1
2

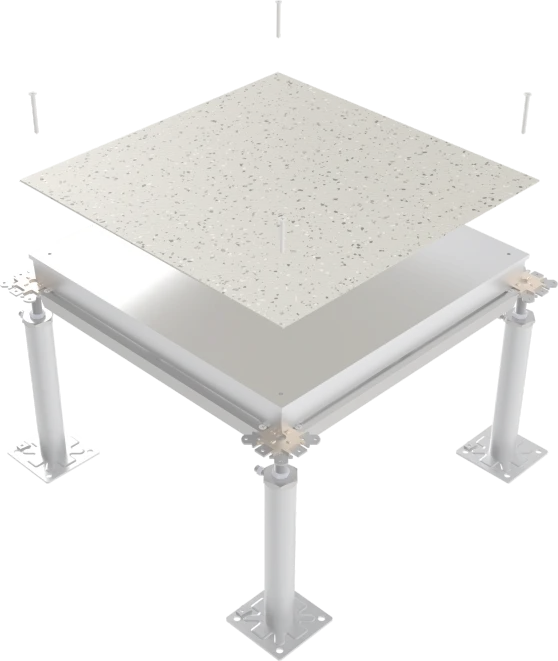

Rubber Flooring
Suitable for aluminum raised access floor surface finishing processing
Aluminum Raised Access Floor
The Benefits of Using Rubber Flooring
as the surface finish for raised access floor
Natural and Eco-Friendly
High quality natural rubber, synthetic rubber, natural mineral fillers, green pigments. Does not contain harmful volatile substances such as formaldehyde, benzene, toluene+xylene.
Super Wear-Resistant
Extremely long service life and permanent elasticity. Even under repeated crushing by heavy objects such as forklifts, the rubber floor remains intact without deformation.
Long-Lasting
Lifespan of up to 20 years, suitable for various occasions. Can be recycled after the product’s lifecycle ends, protecting natural resources and the ecological environment.
Safe and Non-Toxic
Does not pose any harm to the human body.
Waterproof and Slip-Resistant
Greatly reduces falling risk. High elasticity non-porous structure enhances surface friction and waterproof performance. Even wet surfaces will not slip.
Flame Retardant and Burn Resistant
Meets national B1 fire prevention standard. Effectively resists cigarette burns (ignition point up to 600°C–800°C), with no burn marks on the surface.
Application Field of Rubber Raised Floor
Rubber raised access floor system, suitable for high traffic load areas.
Flower Shell Pattern
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.5m, Length: 10–15m, Unit weight: 3.8kg/m² (2.0mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Shell Pattern
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.5m, Length: 10–15m, Unit weight: 3.8kg/m² (2.0mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Two Tone Floral Pattern
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.5m, Length: 10–15m, Unit weight: 3.8kg/m² (2.0mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Small Floral Print
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.5m, Length: 10–15m, Unit weight: 5.0kg/m² (3.5mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Hammer Pattern
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.5m, Length: 10–15m, Unit weight: 5.0kg/m² (3.5mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Dermatoglyph
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.22m, Length: 12–15m. With buffer layer. Unit weight: 5.0kg/m² (3.5mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Anti-Static Rubber Flooring
Commercial rubber flooring. Thickness: 2.0–3.0mm, Width: 1–1.22m, Length: 12–15m. Unit weight: 5.0kg/m² (3.5mm)
ⓘ Production cycle: 15 days. Printed colors may vary slightly from actual samples.
Technical Parameters of Commercial / Cushioned Rubber Flooring
| Test Items | Standard Requirements | Measured Value |
|---|---|---|
| Hardness (Shore A) | ≥75A / ≥75A (Buffer) | 90A / 80A (Buffer) |
| Tear Resistance | ≥20 KN/m / ≥25 KN/m (Buffer) | >28 KN/m / 30 KN/m (Buffer) |
| Tensile Strength | ≥8.2 KN/m / ≥9 KN/m (Buffer) | 10.20 KN/m / 10 KN/m (Buffer) |
| Wear Performance | ≤250 mm³ / ≤200 mm³ (Buffer) | 220 mm³ / 150 mm³ (Buffer) |
| Heating Size Variation Rate | ≤±0.4% | -0.12% |
| Permanent Compression Deformation | ≤0.2 mm | 0.09 mm |
| Resistant to Cigarette Butt Burning | No burn marks | No burn marks |
| Flame Retardancy | ≥B1 | B1 |
| Resistant to Chemical Pollution | No surface changes | No surface changes |
| Light Resistance | ≥ Level 3 gray card label | Level 3 |
| Bending Resistance | Ø20mm rod bent 180° without cracks | Crack-free |
| Bonding Strength (physical/buffer layer) | ≥20 MPA | 30 MPA |
Suggestions for Storage, Transportation, and Installation
- When the ambient temperature is below 5°C, avoid handling uncoiled or unfolded rolls.
- Place rubber flooring rolls vertically in the indicated direction.
- 48 hours before laying, store rolls indoors at ≥15°C. Minimum laying temperature: 10°C.
- Maximum indoor temperature should not exceed 38°C.
- 24 hours before official laying, pre-lay according to the laying sequence number.
- When laying in the same area, strictly follow the sequence number on the roll label.
- Use high shear strength floor adhesive for laying and installation.
Product Features
- Good wear resistance, stain resistance, and environmental friendliness.
- Fire resistance, flame retardancy, and quietness.
- Impact resistance, anti-slip, and shock absorption functions.
- No deformation, no cracking or curling edges, low expansion index.

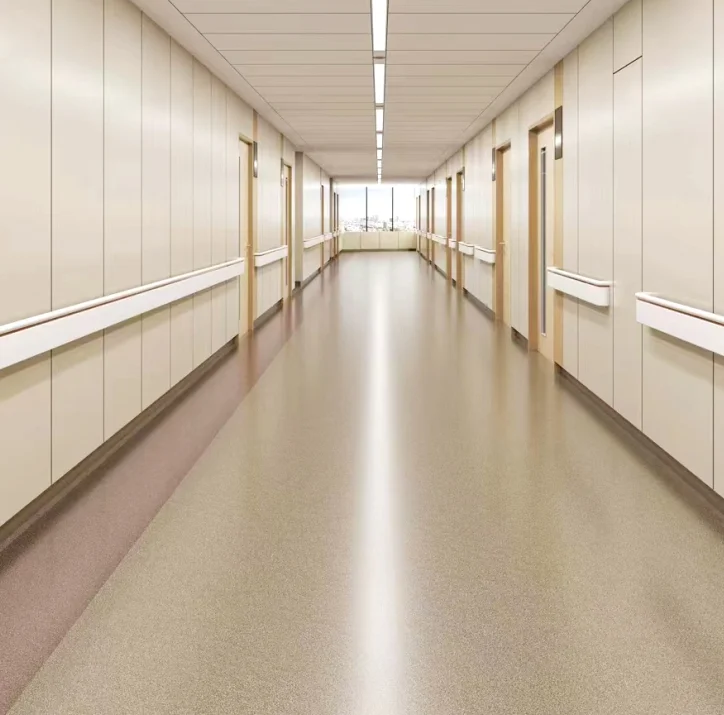

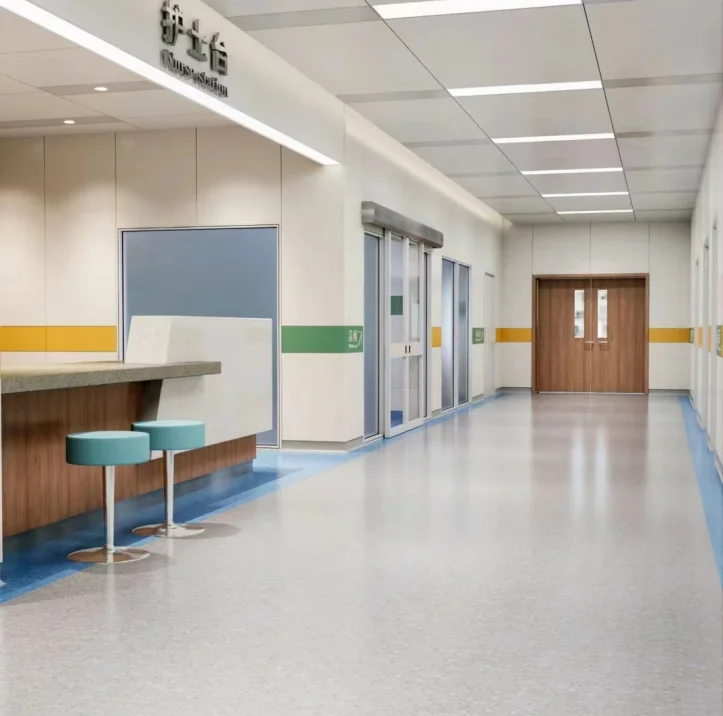

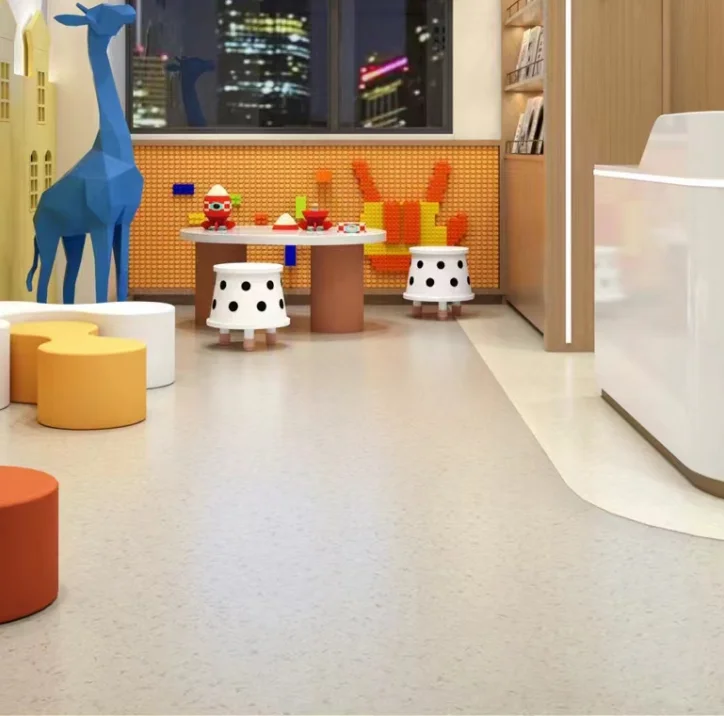

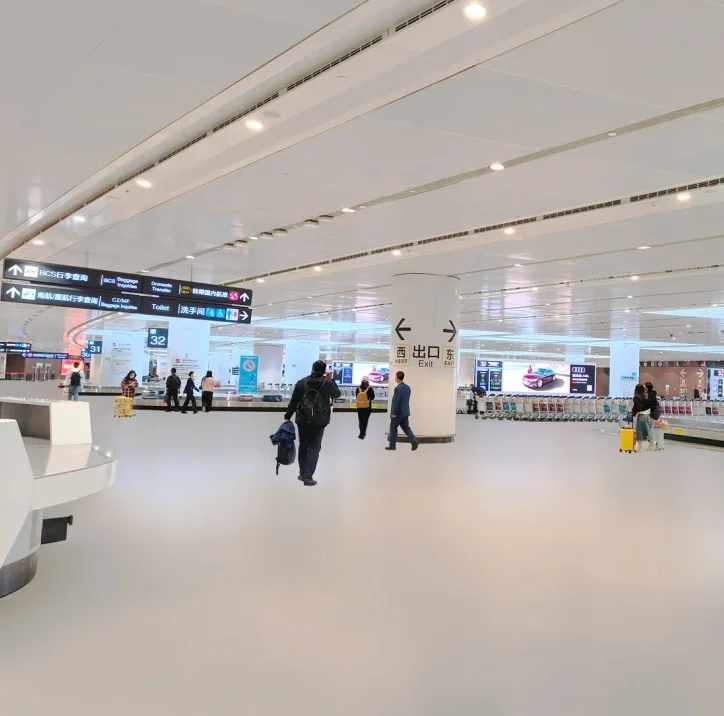

- Suitable for airports, subways, hospitals, shopping malls, schools, and industrial applications.
Technical Parameters of Anti-Static Rubber Flooring
| Test Items | Standard Requirements | Measured Value |
|---|---|---|
| Hardness (Shore A) | ≥75 A | 80 A |
| Tear Resistance | ≥25 KN/m | 30 KN/m |
| Tensile Strength | ≥9 KN/m | 10 KN/m |
| Heating Size Variation Rate | ≤±0.4% | -0.12% |
| Permanent Compression Deformation | ≤0.2 mm | 0.09 mm |
| Resistant to Cigarette Butt Burning | No burn marks | No burn marks |
| Resistant to Chemical Pollution | No surface changes | No surface changes |
| Light Resistance | ≥ Gray card label level 3 | Level 3 |
| Bending Resistance | Ø20mm rod bent 180° without cracks | Crack-free |
| Surface Layer (Dissipative) | 10⁶⁻⁹ Ω | 10⁶⁻⁹ Ω |
| Bottom Layer (Conductive) | 10³⁻⁵ Ω | 10³⁻⁵ Ω |
| Elongation | 200% | 350% |
| Surface Wear | ≤250 mm³ | 200 mm³ |
| Bonding Strength (physical/buffer layer) | ≥20 MPA | 30 MPA |
Product Features
- Made of high-quality rubber raw materials with stable anti-static performance.
- High temperature resistance, soft throughout the year, no shrinkage phenomenon.
- Stable color, good wear resistance and elasticity, no odor.
- Exceeding EU ROSH standard, environmentally friendly and comfortable.
- Suitable for the electronics industry.
