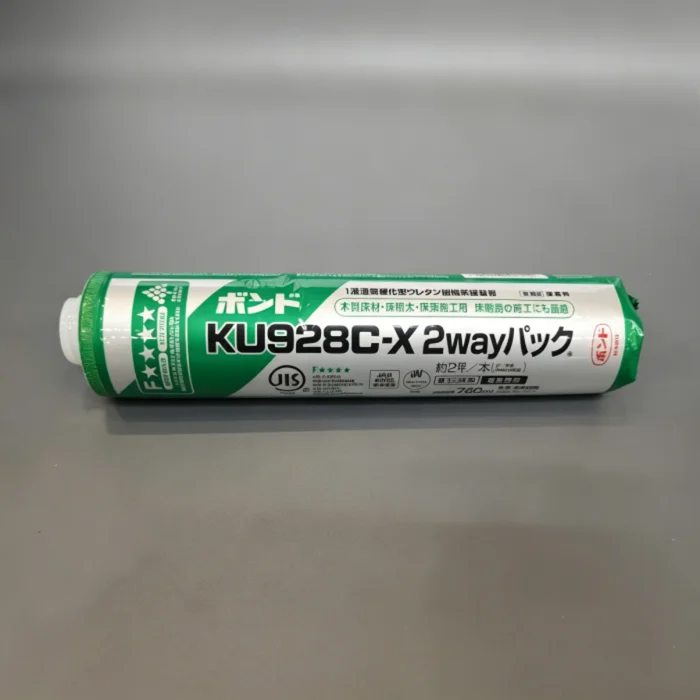

KONISHI KU918C-X Raised Access Floor Pedestal Glue/Adhesive- Made In Japan

Home/Floor Auxiliary Materials/KONISHI KU918C-X Raised Access Floor Pedestal Glue/Adhesive- Made In Japan

Why is it necessary to use for the installation KONISHI of raised flooring KONISHI KU928C-X adhesive?

KONiSHI Ku928C-X raised floor bracket adhesive is a high-performance,one-component, moisture-curing polyurethane resin adhesive, suitable for bonding raised floor brackets to the ground.This product is vOC-protected,complies with Japanese JISA 5536 F★★★★ standards,does not contain any of the 13 harmful substances specified by Japan forindoor concentration guidelines,and does not contain any added vOC (volatile organic compound) components.

1. Reduce the shaking of the bottom bracket to ensure it does not shake

The adhesive can fill the small gaps between the metal base and the rough floor,ensuring a 100% fit on the contact surface. This enables a more uniform distribution of pressure and prevents the bracket from swaying due to partial suspension.

2. Prevent the bracket nut from loosening and sinking

The raised floor may experience loosening of the bracket nuts due to long-term trampling vibration. The use of KONISHI KU928C-X avoids the vibration of metal brackets and loosening of nuts.

3. Absorb vibration

Compared to rigid connections such as expansion bolts,KONISHI KU928C-X adhesive provides a certain degree of elastic cushioning. The adhesive layer can absorb the impact force from the floor surface,reducing the “metal clash sound” caused by direct collision between the bracket and the floor slab.

4. Sound insulation

Elastic colloids can effectively cut off the path of sound waves propagating through solid structures, thereby enhancing the impact sound insulation level of floors (such as the L- value standard commonly used in Japan).

MAIN INGREDIENTS

Solvent-free polyurethane resin

APPEARANCE

Light yellowish-white paste

STENT BONDING STRENGTH

Under average conditions, it is 2750N

PRODUCT DENSITY

1.30–1.50 g/cm³ [23°C]

PACKAGING MATERIAL

Using aluminum packaging, it is easy to use. Compared to traditional plastic cartridges, the waste generated is smaller in volume and easier to dispose of.

GLUE DOSAGE

Each fully coated bracket covers an area of 35 to 40 square meters, while each bracket with four holes applied with glue covers an area of 50 to 55 square meters.

PACKING SPECIFICATION

NET. 760 ml/piece, 12 pieces/box

SHELF LIFE

2 years from the date of production

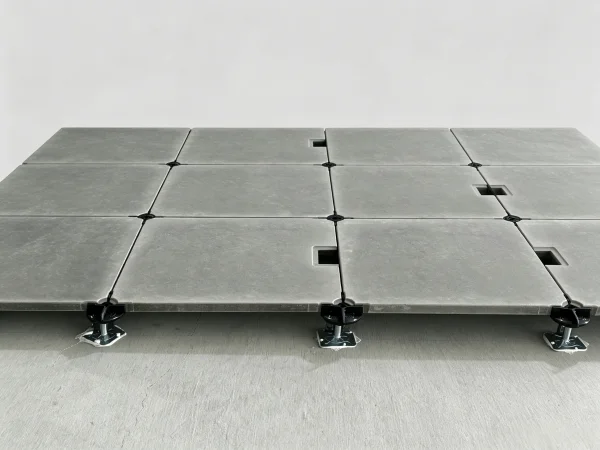

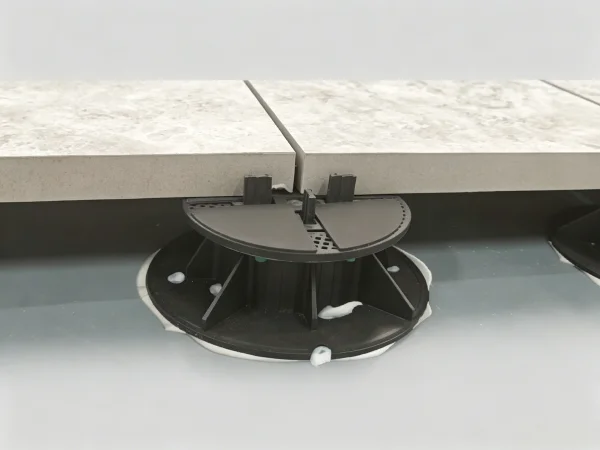

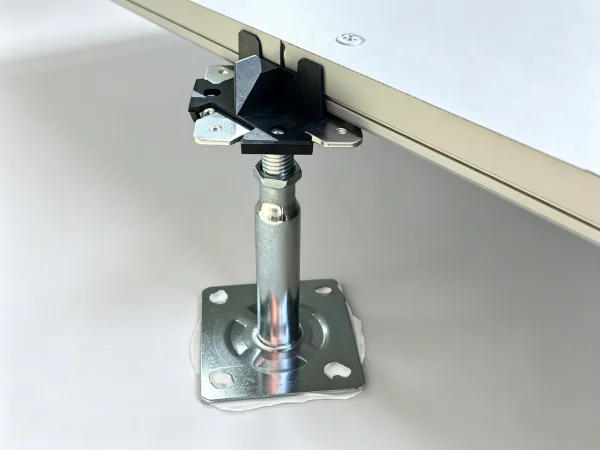

APPLICATION SCENARIOS

Installation of floor supports for commercial office buildings

Supporting structure adhesion for office spaces in data center buildings

The floor support structure of the silicon wafer manufacturing plant is bonded.

Parameter performance

A: Test on bonding strength between metal bracket base and ground

All the following data were measured under standard conditions of 23 ± 1°C and 55 ± 5% RH.

	Health-preserving conditions	Test count	Bond strength of adhesive	Maximum displacement
Adhesion strength between metal bracket base and ground	23°C × 24 Hours (1 day)	1	2750N	1.1mm
	23°C × 72 Hours (3 day)	3	2960N	1.3mm
	23°C × 168 Hours (7 day)	3	3483N	1.3mm

B: Test of bonding strength between plastic bracket base and ground

All the following data were measured under standard conditions of 23 ± 1°C and 55 ± 5% RH.

	Health-preserving conditions	Test count	Bond strength of adhesive	Maximum displacement
Adhesion strength between plastic bracket base and ground	23°C × 24 Hours (1 day)	1	2250N	0.8mm
	23°C × 72 Hours (3 day)	3	2530N	1.1mm
	23°C × 168 Hours (7 day)	3	2782N	1.1mm

VOC volatilization rate

Classification of JIS grades for building materials

Classification of JIS grades for building materials
Grade Identification	F★★★★
Formaldehyde emission rate (μg/m²·h)	Below 5
Restrictions on the use of interior decoration	Not limited by the usable area
F★★★ Definition: The formaldehyde emission rate per square meter per hour is less than 5 micrograms. It does not contain 13 harmful substances such as formaldehyde, toluene, and xylene.
