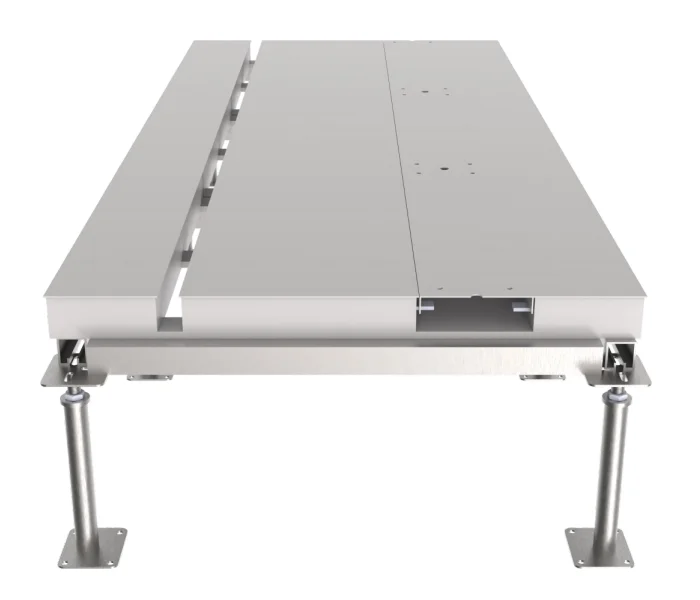

HUIYA custom-designed and manufactured the platform deck modules for the Lexus automotive plant. The system features modular installation for enhanced on-site installation precision and construction efficiency, with customized cable trunking to accommodate plant operational requirements.

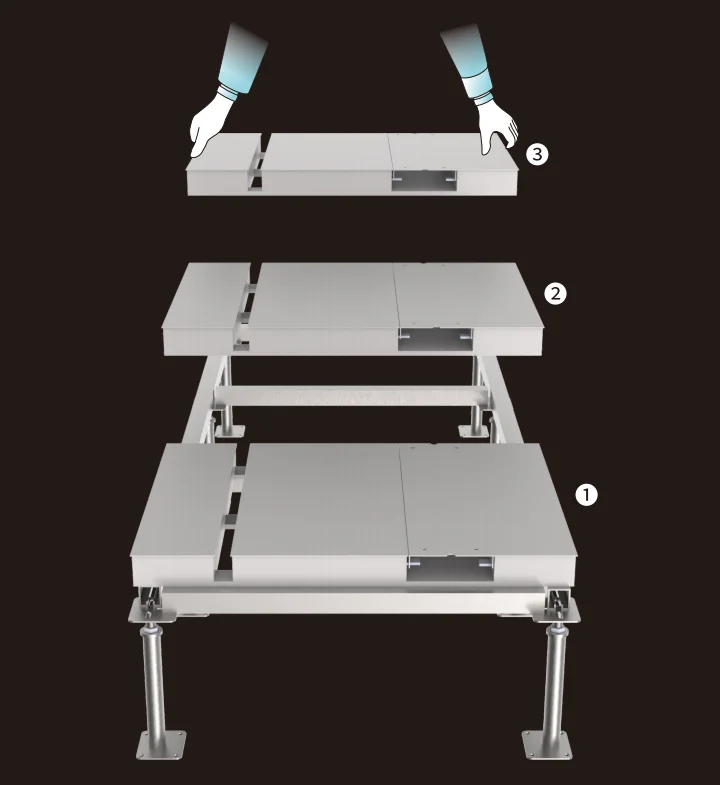

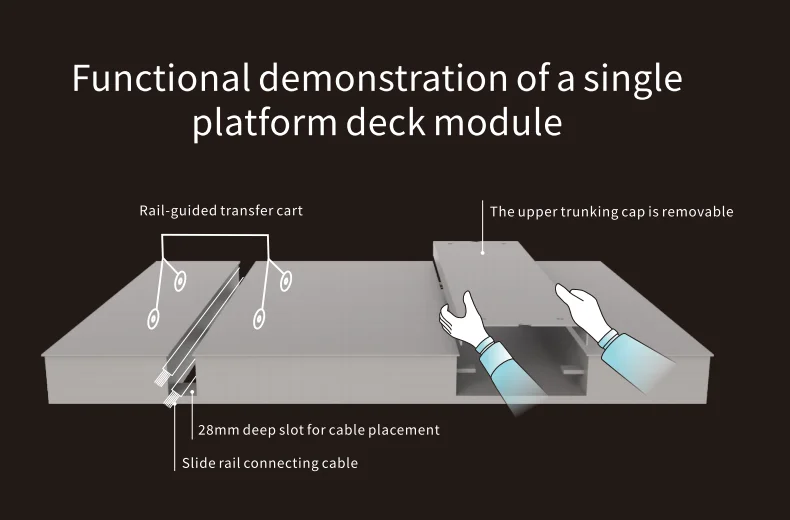

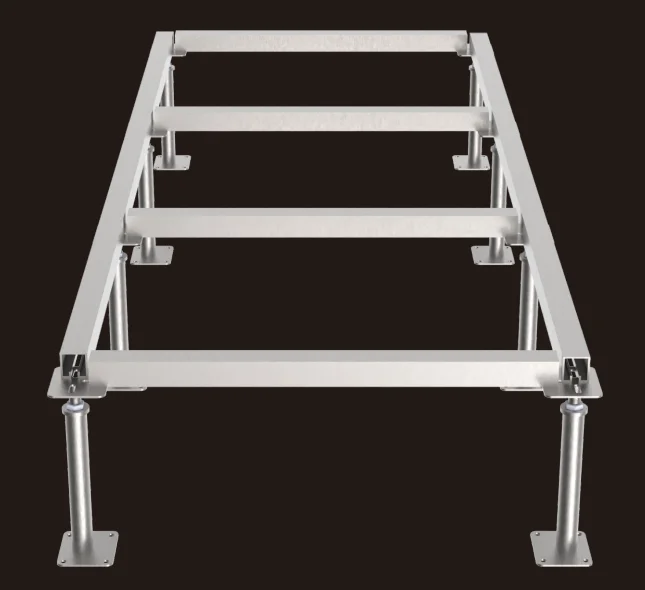

Each platform deck module is built to 800mm × 600mm × 60mm and formed through steel welding processes, with the deck manufactured to meet customized operational requirements. A modular layout is used for installation, and the exploded-view sequence illustrates the modular assembly process. The bottom structure system consists of a hot-dip galvanized steel frame with internal reinforcement beams, adjustable pedestals at the corners and mid-span, and square base plates with bolt holes for secure floor anchoring. The design also incorporates a removable trunking cap and a rail-guided transfer cart, demonstrated in the functional display of a single platform deck module.

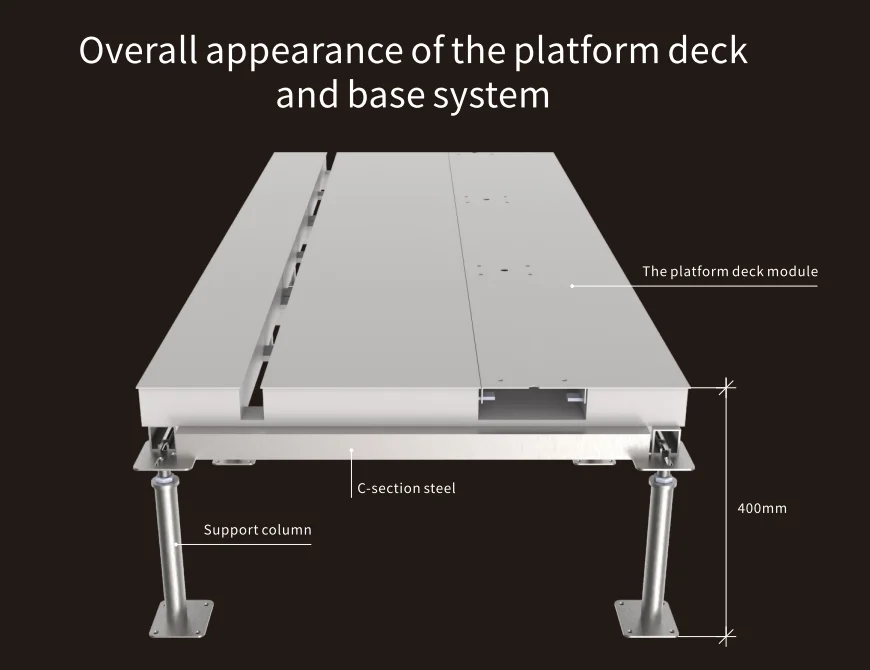

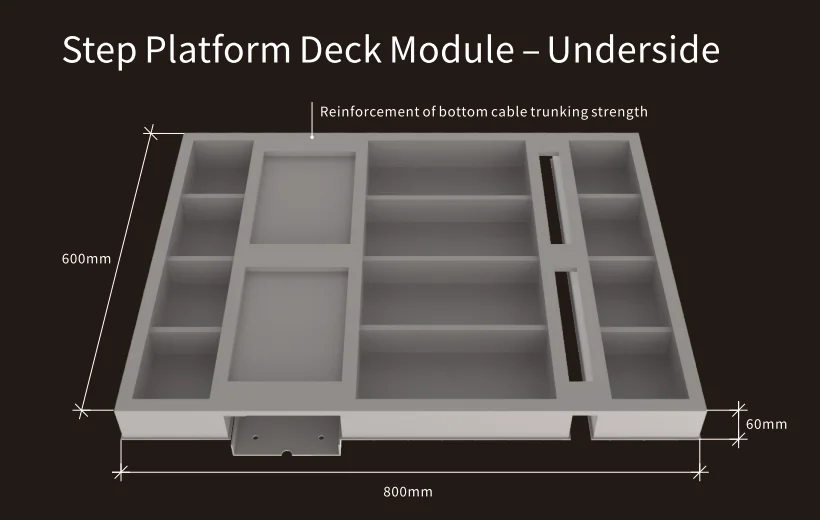

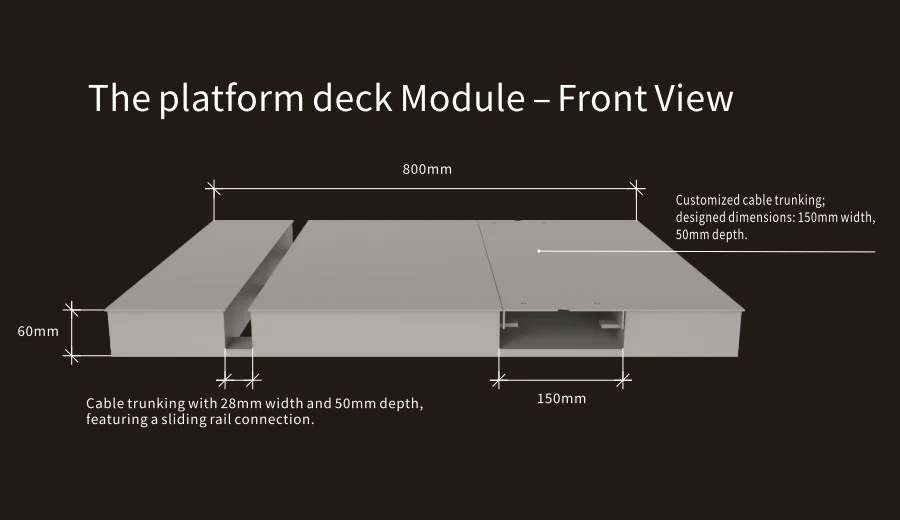

The platform deck and base system stand at an overall height of 400mm, supported by C-section steel and support columns. Cable trunking runs at 150mm on the front view, with reinforced trunking visible on the underside of the step platform deck module. These details reflect HUIYA’s approach to matching the system to the actual operating conditions of the plant floor.
