HUIYA GRC800 Inorganic Cement Raised Access Floor: Creating a High-Quality Smart Office Space for a Global Semiconductor Equipment Leader

Project Overview

• Project Name: Tokyo Electron Wuxi Off-Site Office Project
• Project Location: 14th Floor, Huahong Tower, 88 meters northeast of Zoujiali, Xinwu District, Wuxi, Jiangsu Province
• Installation Date: January 11, 2026
• Installation Area: 650 square meters
• Selected Product: HUIYA GRC800 Inorganic Glass Reinforcement Cement Raised Access Floor

---

About the Client: Global Semiconductor Equipment Giant – Tokyo Electron (Shanghai) Co., Ltd.

Tokyo Electron (Shanghai) Co., Ltd. is a core subsidiary in mainland China of Tokyo Electron Limited (TEL), a world-leading supplier of semiconductor and flat panel display manufacturing equipment. The company is responsible for the sales and after-sales service of semiconductor and flat panel display manufacturing equipment throughout mainland China.

Headquartered in Tokyo, Japan, the TEL Group is one of the foremost leaders in the global semiconductor equipment industry. Its product portfolio encompasses coater/developer systems, etching equipment, thin-film deposition equipment, cleaning equipment, and other core front-end semiconductor process tools, serving the world’s top chip manufacturers.

Tokyo Electron (Shanghai) Co., Ltd. is headquartered in Shanghai’s Zhangjiang Hi-Tech Park (555 Gauss Road), with multiple branch offices across China covering key semiconductor industry cities including Beijing, Wuxi, Xi’an, Nanjing, Wuhan, Hefei, Shenzhen, and Chengdu. The Wuxi office is located at Room A1801, IC Design Building, 33-2 Xinda Road, Xinwu District, Wuxi, Jiangsu Province, in close proximity to Wuxi’s integrated circuit industry cluster, providing efficient localized technical support and after-sales service to semiconductor clients in the Yangtze River Delta region.

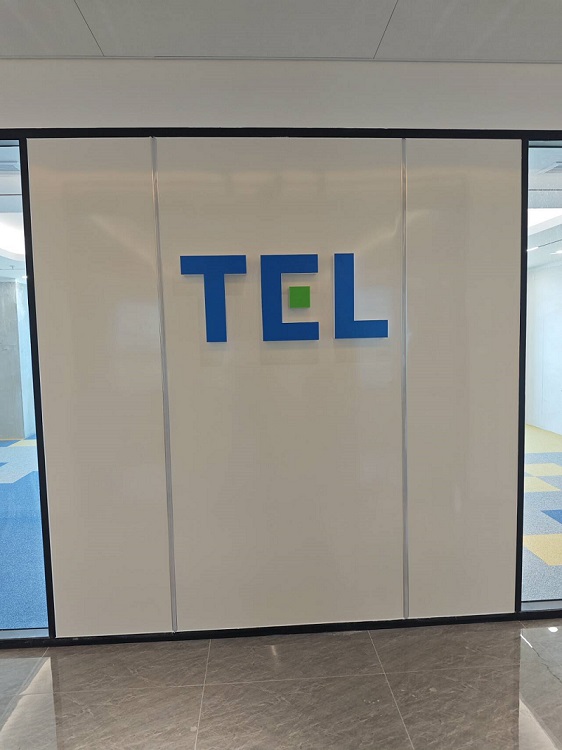

The 14th floor of Huahong Tower, where this project is located, represents a brand-new renovation for Tokyo Electron’s Wuxi off-site office, aimed at creating a modern, high-efficiency working environment for the team.

---

Professional Office Raised Access Floor Solution: HUIYA GRC800 Inorganic Cement Raised Access Floor

The HUIYA brand GRC800 Inorganic Cement Raised Access Floor (LIGHT-800LBS) is a next-generation green and eco-friendly network floor systematically improved and developed upon the traditional LIGHT SC800 steel raised access floor. The product is manufactured from natural inorganic materials including silicate, inorganic fiber, mineral fiber, and quartz sand, with an embedded 20×20 welded steel wire reinforcement mesh (wire diameter Φ2.2mm), formed through a high-pressure single-press molding process. The finished product contains no volatile toxic substances or radioactive materials, is fully biodegradable, and has a service life equivalent to that of the building itself – making it a truly eco-friendly inorganic raised access floor.

Each floor panel comes with built-in cable routing holes. When the cable volume at a workstation is low, cables can be routed directly without cutting the panel; when higher cable volumes are needed, pre-molded cable outlet plates can be swapped in, avoiding dust contamination from on-site cutting.

Core Performance Advantages

• Outstanding Load-Bearing Capacity: Excellent static and dynamic load performance with a safety factor of 3.0, meeting the load-bearing requirements of high-density office environments.
• Fast and Precise Installation: Optimized panel design supports rapid positioning and installation, significantly shortening construction timelines.
• Class A Non-Combustible Fire Rating: Tested per ASTM E136-11 with no combustion or ignition observed; rated Class A per ASTM E84-14; rated A1 per European standard EN 13501-1:2002 — delivering outstanding fire safety performance.
• Moisture-Proof and Corrosion-Resistant: The raw materials inherently possess fireproof and waterproof properties, requiring no additional moisture-proofing treatment.
• Patented Silent Design: Flame-retardant, sound-insulating, and vibration-dampening pads are fitted atop the pedestals, effectively reducing friction noise between the metal pedestals and the GRC panels, creating a quiet and comfortable walking experience.
• Excellent Grounding Conductivity: Ensures reliable connection between the raised access floor system and the building’s grounding system, meeting the anti-static requirements of electronic equipment office environments.
• High Surface Compatibility: With superior flatness, the surface can accommodate a wide range of finish materials including carpet tiles, PVC/vinyl, solid/engineered wood flooring, and rubber flooring.

GRC800 Panel Technical Specifications

Performance Parameter	Unit	Value
Panel Dimensions	mm	500 × 500 × 26 (corner thickness 26.0mm, panel body thickness 25.5–26.0mm)
Steel Wire Mesh Structure	—	20 × 20 welded reinforcement steel wire mesh, wire diameter Φ2.2mm
Single Panel Weight	kg	13.5
System Weight per Square Meter (incl. pedestals)	kg	55
Ultimate Load	kN	> 7.2
Concentrate Load	kN	3.6 (maximum deflection 2.5mm)
Safety Factor	—	3.0
Uniform Load	kN/m²	18.0
Impact Load	kg	68 (sandbag impact, panel does not fracture)
Thickness Tolerance	mm	±0.25
Surface Flatness	mm	±0.5 (measured along panel diagonal)

Fire and Acoustic Performance

Test Standard	Result
ASTM E136-11	No Combustion or Ignition
ASTM E84-14	Class A
EN 13501-1:2002	A1
ASTM E492-09 (Acoustic Performance)	Calculated Impact Insulation Class (IIC) 58

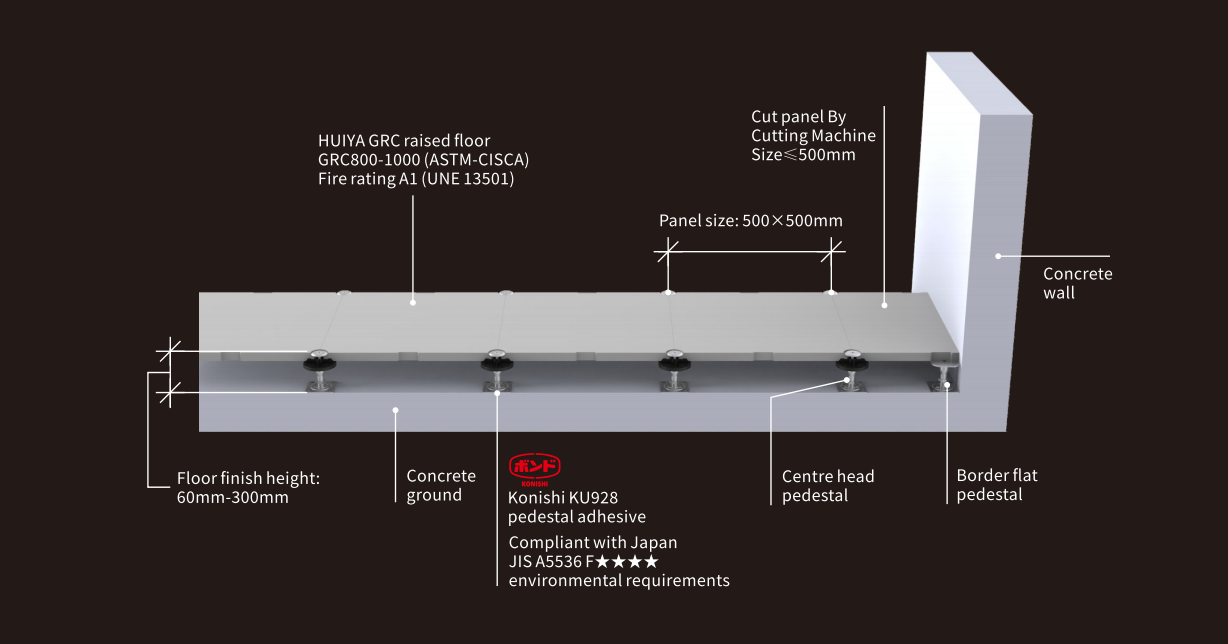

Support System

The pedestal system used in this project consists of H60–150mm standard galvanized steel pedestals in two types: center pedestals and border flat pedestals. Each pedestal is precision-assembled from an M8 bolt, circular steel cover plate, black PVC vibration-dampening pad, steel top plate (80mm × 80mm × 3.0mm), M18 threaded rod, locking nut, and steel base plate (95mm × 2mm). The nominal pedestal height ranges from 60mm to 150mm, with ±25mm fine adjustment via the threaded rod to accommodate floor-level deviations and ensure final surface-level accuracy.

The four corners of each floor panel are secured to the pedestal top plates via a corner-locking mechanism. The entire system requires no cross-beams, making installation quick and efficient.

---

Quality Auxiliary Material: KONISHI KU928C-X Pedestal-Specific Adhesive from a Century-Old Japanese Enterprise

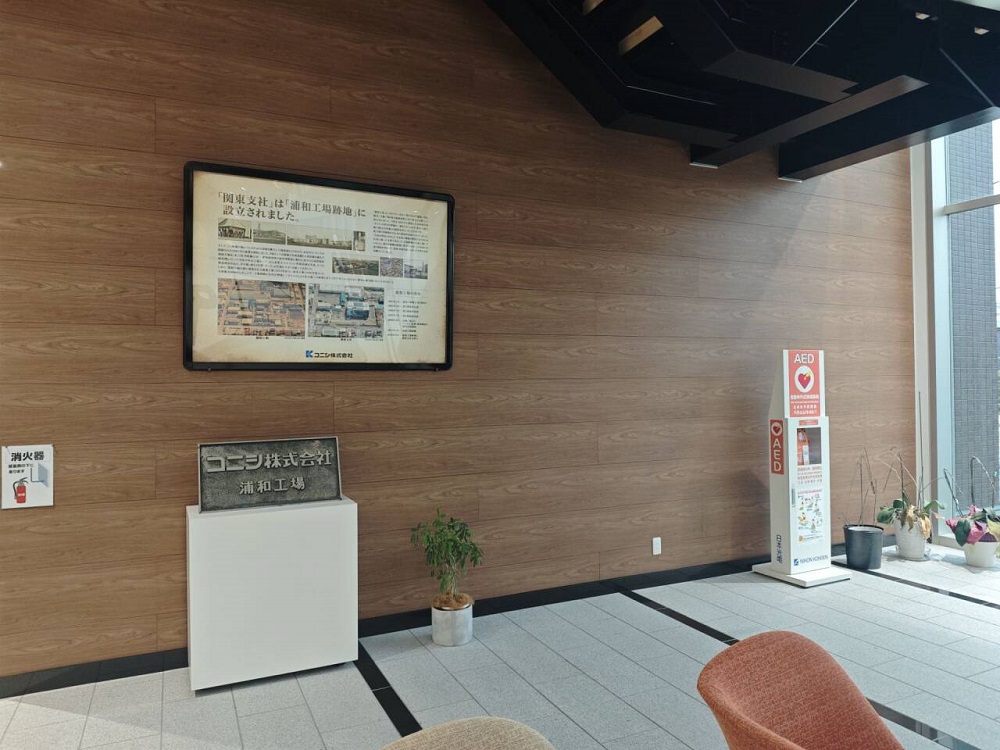

About Konishi Co., Ltd. (コニシ株式会社)

Konishi Co., Ltd. was founded in 1870 (Meiji 3) and boasts a distinguished history of over 155 years. It is one of Japan’s oldest manufacturers of adhesives and sealants and is listed on the Tokyo Stock Exchange. Headquartered in Osaka, Japan, its renowned brand “BOND” (ボンド) commands an exceptionally high market share and industry reputation in Japan’s construction, industrial, and consumer adhesive sectors. Konishi’s products are widely used in building structures, interior finishing, civil engineering, electronic manufacturing, and other fields, and are recognized for their outstanding product quality and rigorous environmental standards.

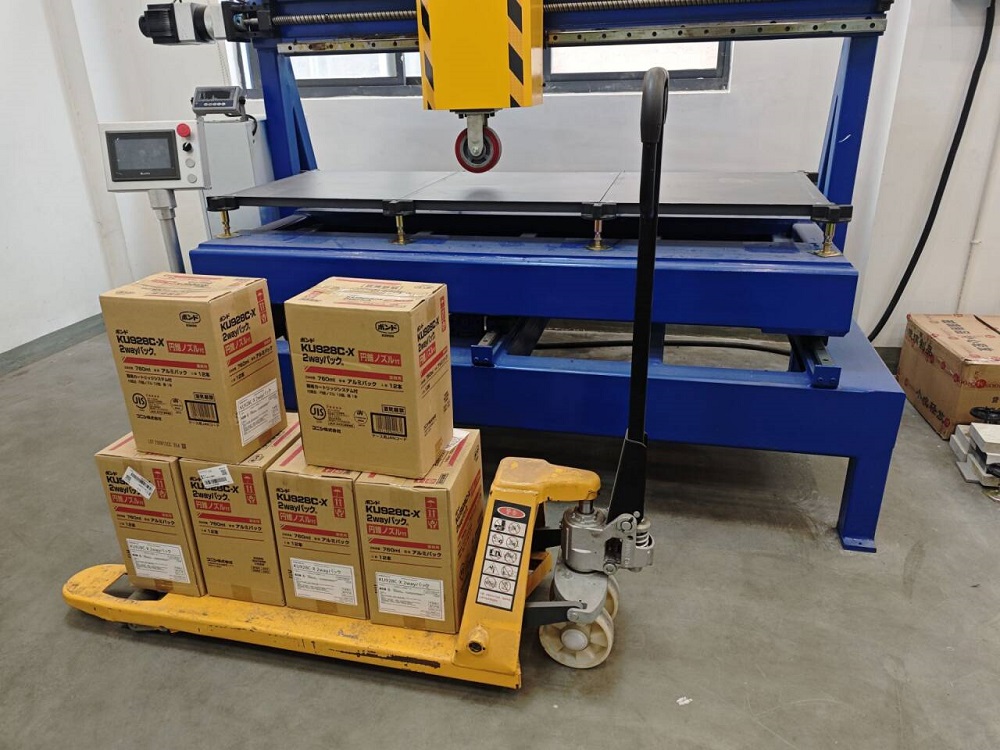

KU928C-X Product Technical Characteristics

BOND KU928C-X is a high-performance, single-component, moisture-curing polyurethane resin adhesive (Main Ingredients: Solvent-free Polyurethane Resin) specifically designed for bonding and fixing steel and plastic raised access floor pedestals to the subfloor. The product is a pale yellowish-white paste, packaged in a 760ml aluminum foil pack (2way Pack), equipped with a simple slot system and conical nozzle for direct use with a standard caulking gun.

The key technical specifications and characteristics of this product are as follows:

Environmental Rating: Compliant with JIS A 5536 F☆☆☆☆ (F-4 Star) standard — the highest environmental grade for formaldehyde emission under Japanese Industrial Standards.

VOC Control: Free of 13 harmful indoor chemical substances, with no added volatile organic compounds (VOCs) and virtually no odor.

Bonding Strength: 24-hour bonding strength of 2,750N and 7-day bonding strength of 3,483N (pedestal base plate to concrete substrate bonding test), ensuring long-term secure and reliable pedestal fixation.

Moderate Elasticity: The cured adhesive film retains moderate elasticity, effectively absorbing micro-vibrations generated during use of the raised access floor system and preventing friction noise between the floor panels and pedestals.

Weather Resistance: Excellent water, fire, and oil resistance, suitable for humid areas.

Safety: Contains no harmful solvents, is classified as a non-hazardous material, and features high flame retardancy.

Patented Applicator Design: Comes with a disposable patented adhesive spreading container with a built-in scraper function. After squeezing KU928 adhesive into the container, it can be evenly applied to the pedestal base plate. The container capacity precisely matches the volume of one KU928 cartridge, purpose-designed for large-area raised access floor installation scenarios to boost construction efficiency.

Application of KU928 Adhesive in This Project

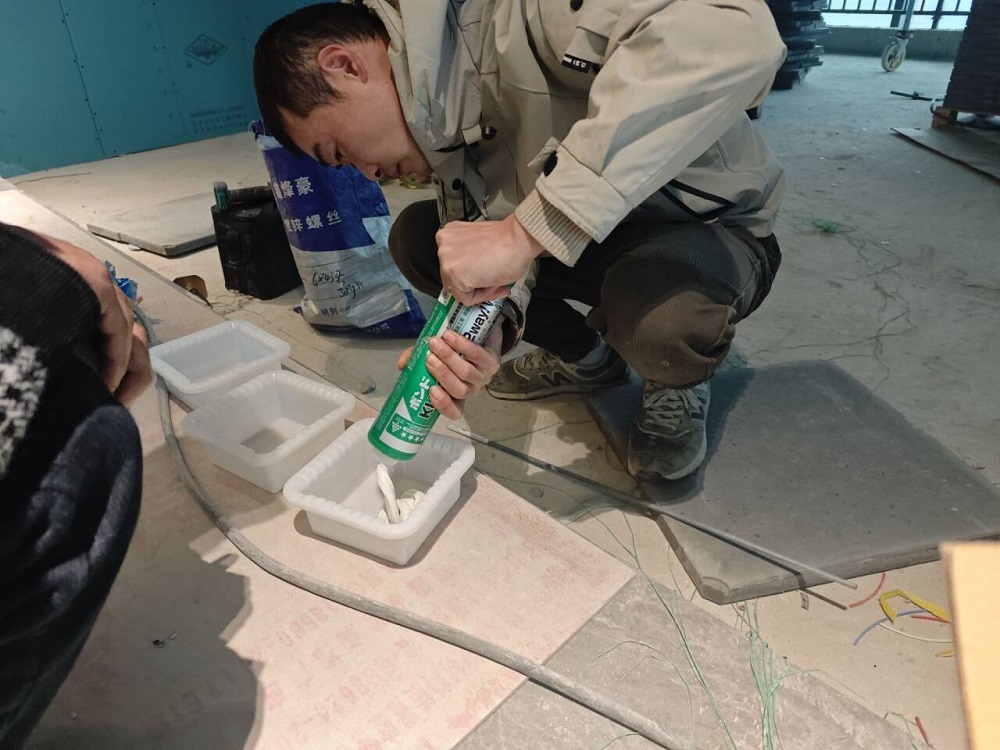

During installation, operators apply KU928C-X adhesive via a dedicated caulking gun to the contact surface between the steel pedestal base plate (95mm × 95mm × 2mm) and the concrete subfloor, utilizing a moisture-curing reaction to achieve a strong chemical bond between the pedestal and the floor surface. This anchor-free bonding method completely eliminates the need to drill holes into the structural slab, effectively preserving the building’s structural integrity — making it especially suitable for leased commercial office spaces where damage-free removal may be required upon lease expiration.

In the office environments of semiconductor equipment companies, indoor air quality requirements are extremely stringent. By selecting KONISHI KU928 adhesive meeting the F-4 Star standard, harmful gas emissions are eliminated at the source, ensuring the health and safety of the office space.

---

Precision Craftsmanship: Full Construction Documentation of the 650-Square-Meter Project

In accordance with the HUIYA GRC800 raised access floor standard installation specifications, the construction process proceeds as follows: First, the room’s length and width dimensions are measured, and the number of full panels and edge-cut panel sizes are calculated. For this project, installation began with the first center pedestal placed 300mm from the wall along the length direction, with full panels laid outward in sequence. Once all full panels in the central area were installed, the actual dimensions of the remaining edge zones on both sides were measured, and panels were precision-cut using a dedicated cutting machine before being installed as edge panels to complete the full coverage. The same principle applies along the width direction. Edge areas are supported and fixed using border flat pedestals to ensure a tight finish against the walls.

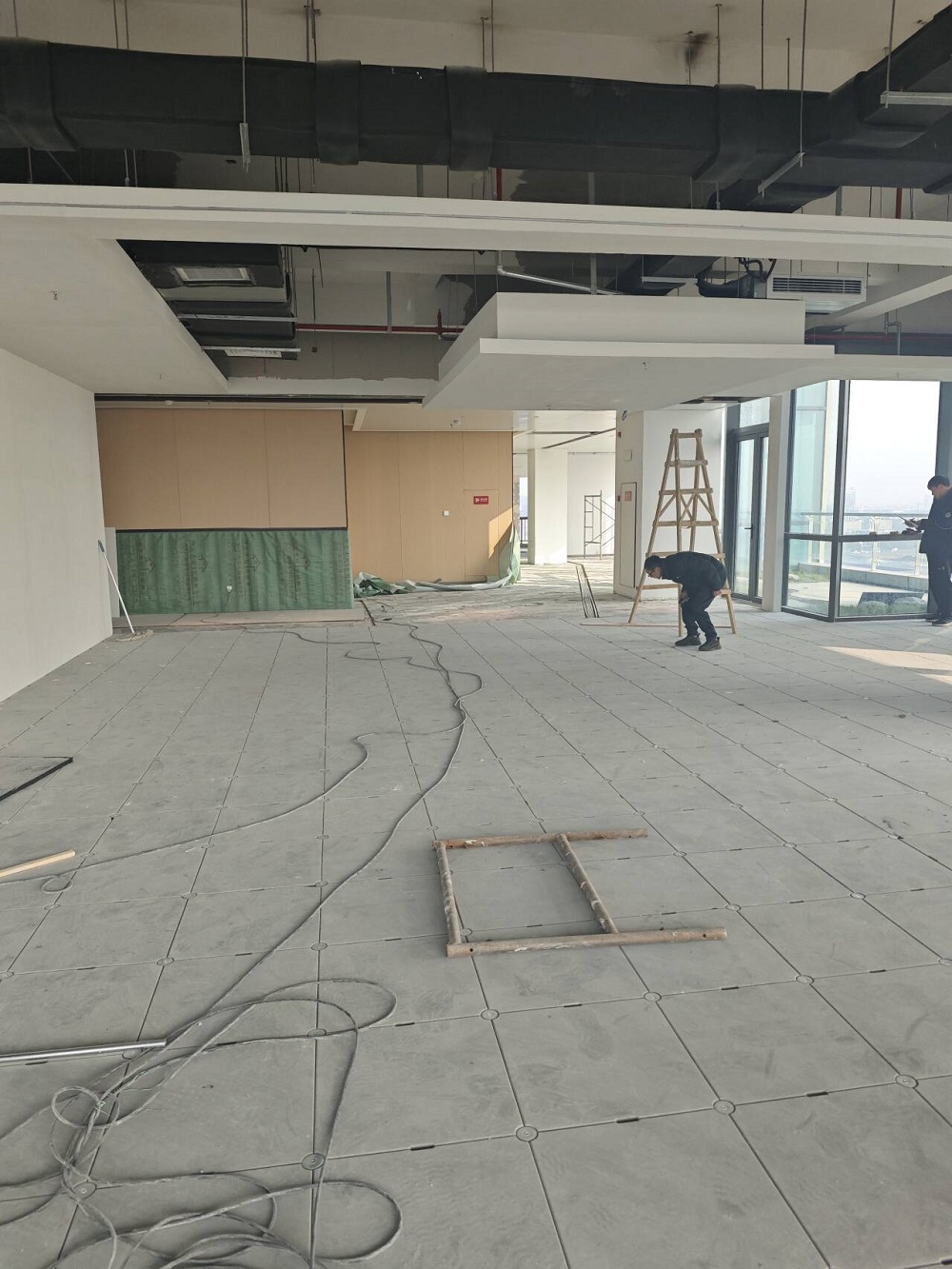

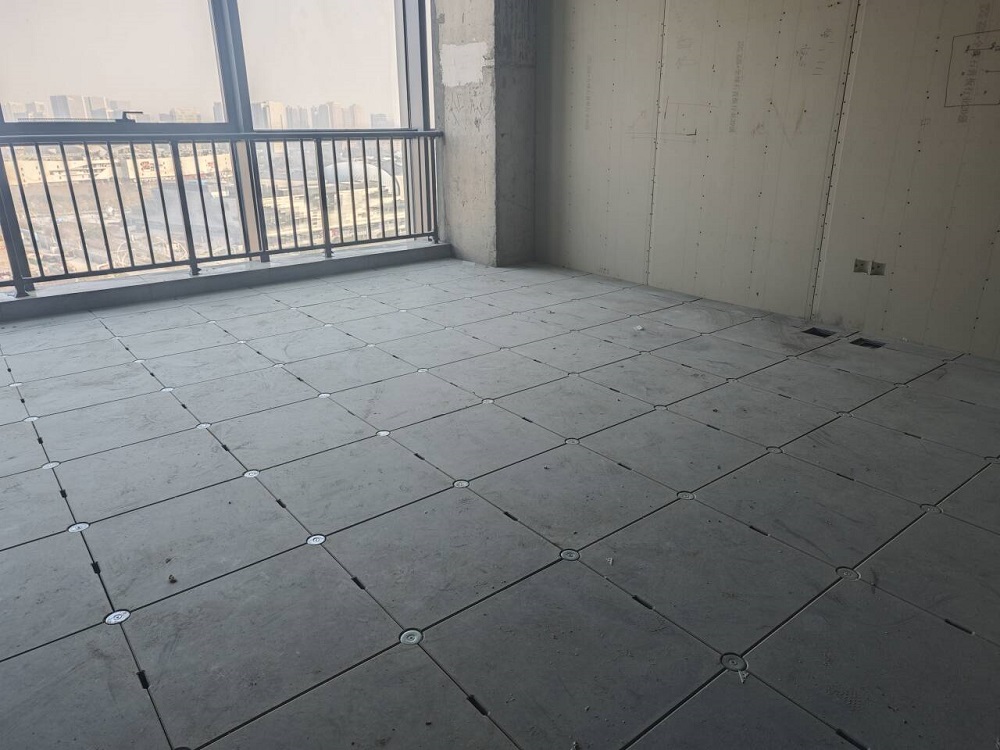

Step 1: Raised Access Floor Base Layer Installation

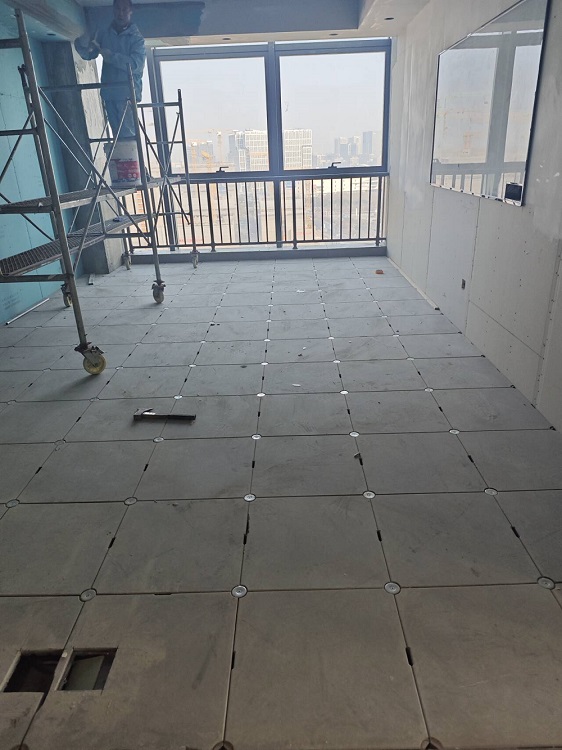

The construction team first bonded the galvanized steel pedestal base plates firmly to the concrete subfloor on the original 14th floor of Huahong Tower using KONISHI KU928 adhesive. Each pedestal’s height was adjusted via the threaded rod to achieve a uniform level surface. The GRC800 inorganic cement raised access floor panels were then laid one by one, with each panel’s four corners precisely seated into the corner-locking mechanisms on the pedestal top plates, ensuring overall stability and consistency across the entire floor surface.

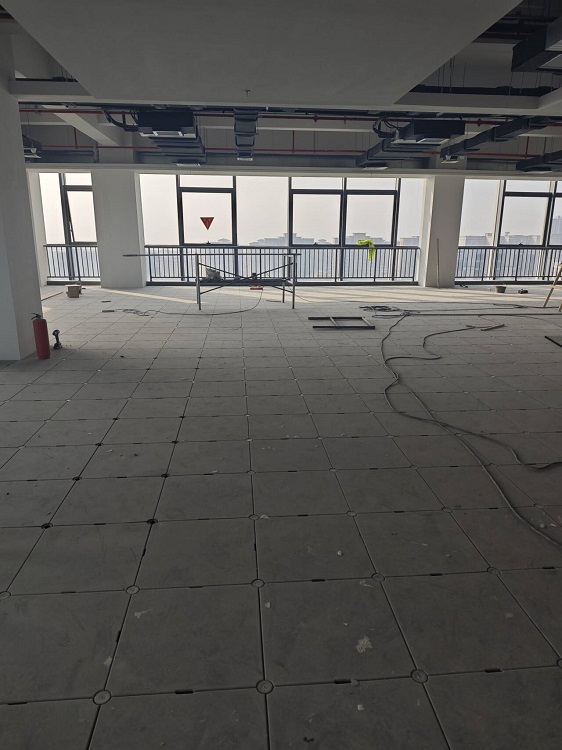

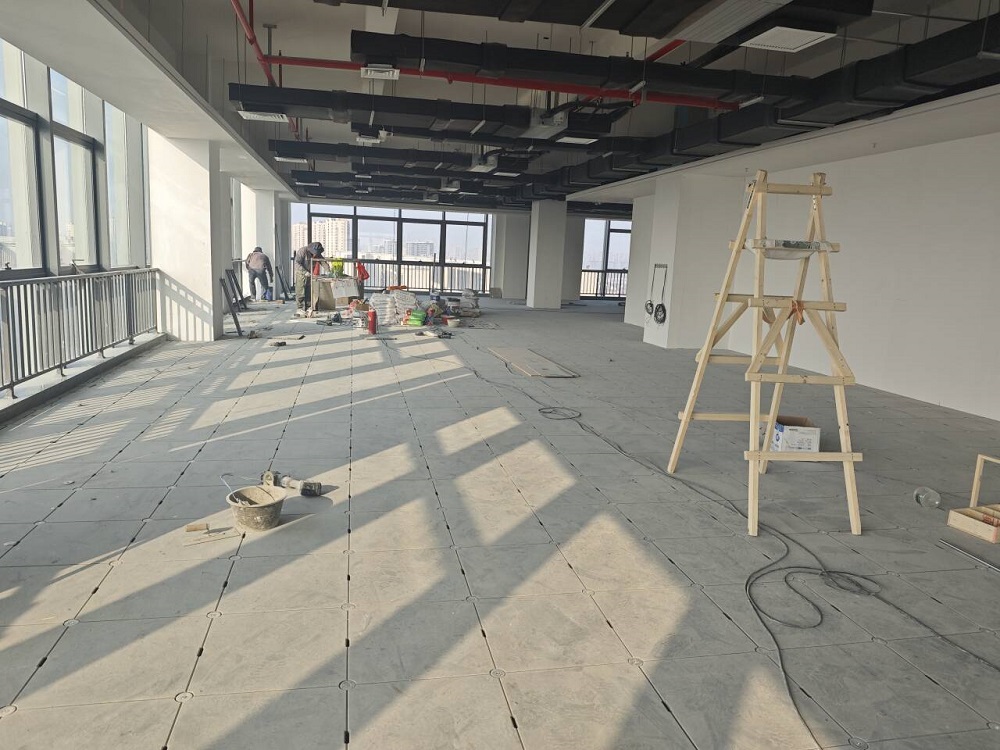

Across the 650-square-meter open office area, the raised access floor system is uniformly and precisely aligned, with tight and even gaps between panels and a stable, reliable pedestal system. The 60mm to 150mm void beneath the raised access floor provides ample routing space for subsequent network, power, and low-voltage cabling, allowing workstation wiring to be adjusted at any time according to actual needs — completely eliminating the exposed cables and safety hazards associated with traditional floor-level wiring. Each panel weighs only 13.5kg and can be easily lifted by a single person during subsequent maintenance, facilitating convenient inspection and servicing of cable infrastructure within the void.

Step 2: Surface Layer Installation and Finishing

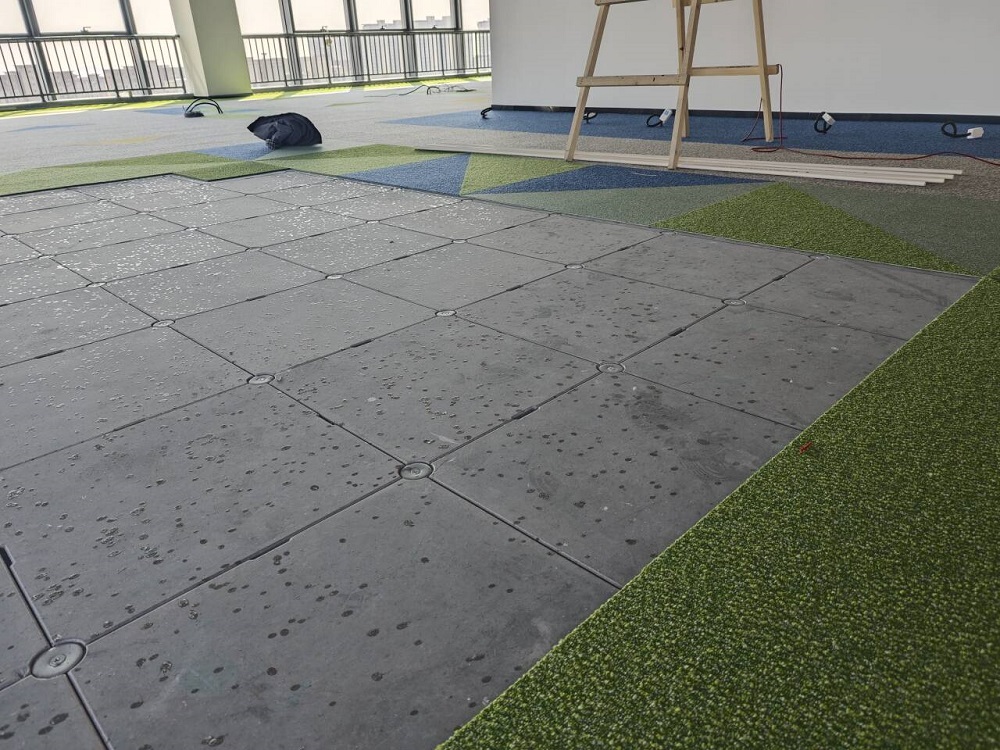

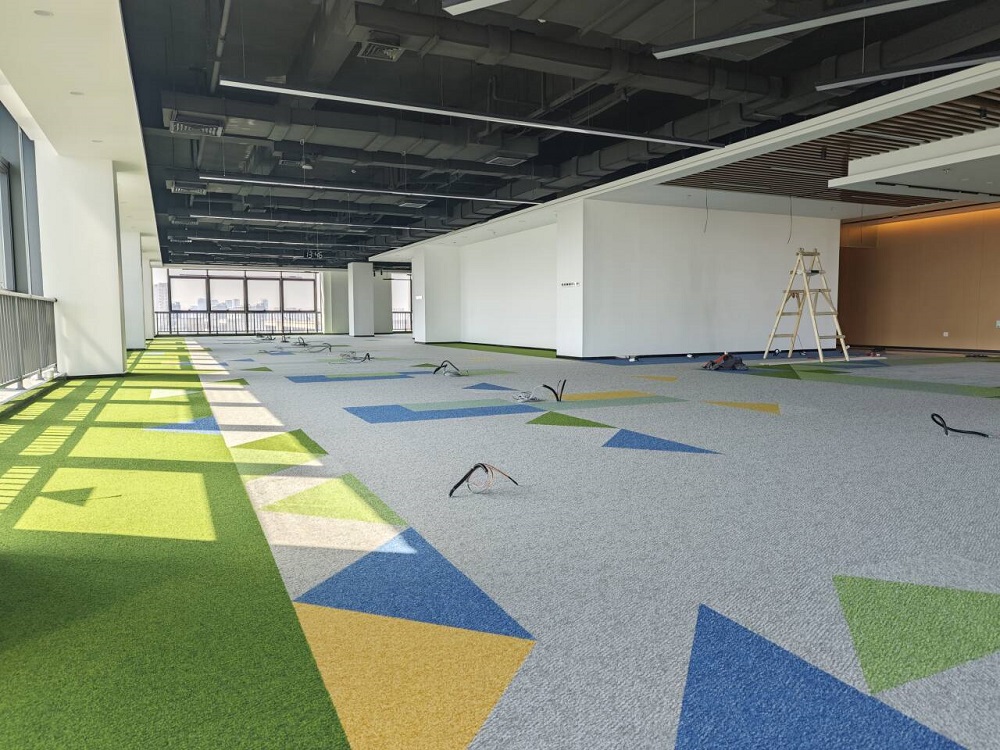

After the raised access floor base layer installation was completed and overall levelness was verified, vibrant carpet tiles were laid on the surface. The carpet features a predominantly gray base tone accented with geometric color-block patterns in green, blue, and yellow. While maintaining the dignified professionalism of an office environment, the design incorporates an energetic and contemporary design language. The carpet tiles complement the GRC800 panels’ excellent surface flatness (±0.5mm) perfectly – after installation, the floor surface is highly level with no arching, no edge lifting, and outstanding visual consistency.

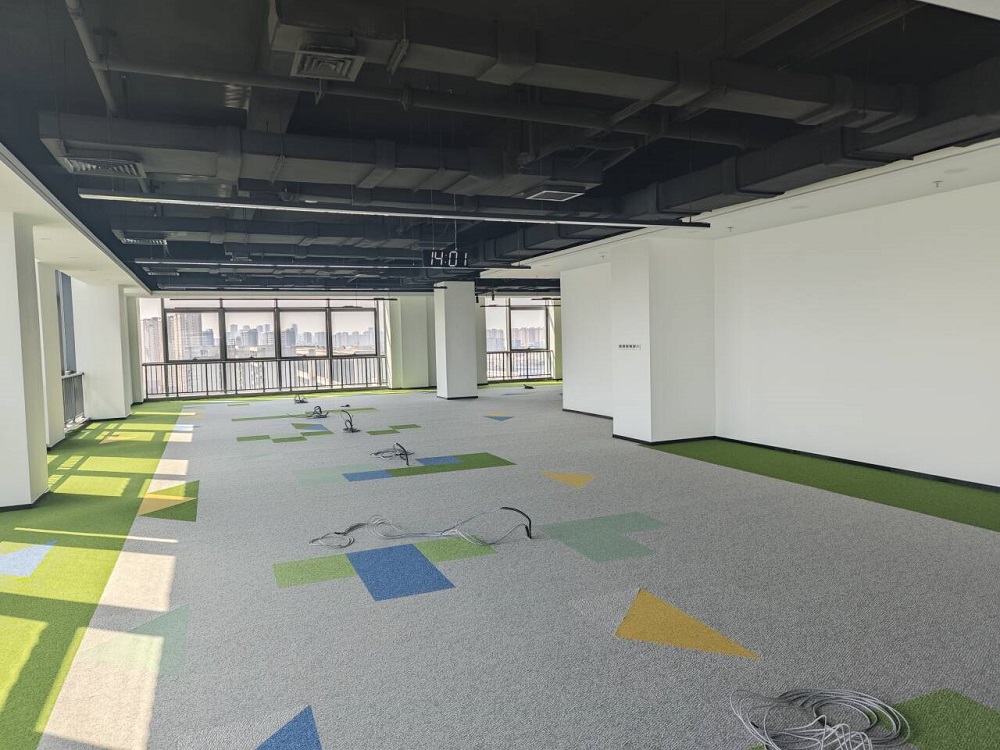

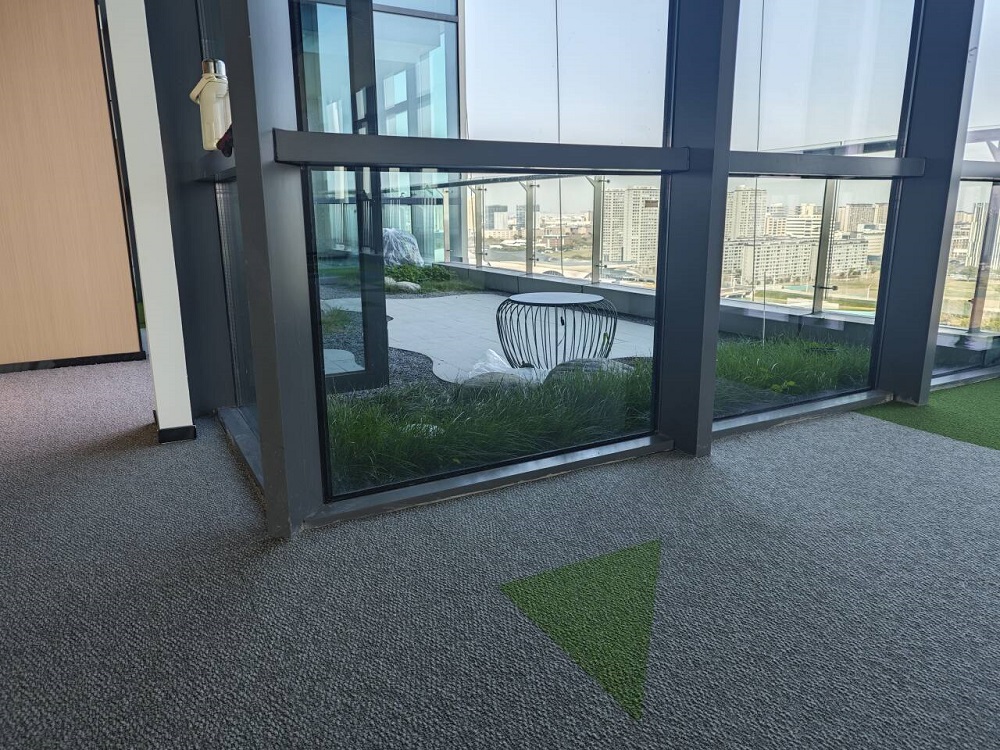

The completed office space is bright and open, with no noise, looseness, or soft spots when walking across the floor. The GRC800 panel’s uniform load capacity of 18.0 kN/m² and safety factor of 3.0 provide ample load-bearing margin for everyday office furniture, equipment, and foot traffic. Meanwhile, the sound-insulating design of the black PVC vibration-dampening pads atop the pedestals renders the entire floor system virtually silent during foot traffic, creating a quiet working environment for the semiconductor technology team that demands high levels of concentration.

---

Value Delivered: Eight Core Project Highlights

✅ Client Quality Standards: This is a core office project in China for TEL, a global semiconductor equipment leader, with extremely rigorous requirements for construction quality, material environmental friendliness, and indoor air quality.

✅ End-to-End Green Assurance: GRC800 inorganic floor panels (no volatile toxic substances, no radioactivity, fully biodegradable) combined with KONISHI KU928C-X F☆☆☆☆ adhesive (zero formaldehyde, free of 13 harmful substances, no added VOCs) – achieving full-chain green environmental protection from panels to auxiliary materials.

✅ Outstanding Fire Rating: The GRC800 panel holds triple international fire certifications – ASTM E136-11, ASTM E84-14 Class A, and EN 13501-1:2002 A1. The KU928 adhesive also features high flame retardancy, bringing the entire floor system to the highest fire performance level.

✅ High Load-Bearing, High Precision: Ultimate load > 7.2 kN, uniform load 18.0 kN/m², safety factor 3.0; panel thickness tolerance ±0.25mm, flatness ±0.5mm – providing a solid foundation for a high-quality office space.

✅ Efficient Construction: The 650-square-meter installation area was completed using an anchor-free adhesive bonding method – no drilling required – preserving the structural integrity of the building slab, with both the base-layer raised access floor and surface-layer carpet tile installation completed efficiently in one pass.

✅ Flexible Cable Routing: The 60–150mm void beneath the raised access floor system provides ample space, with built-in cable routing holes in each panel, perfectly meeting the high-density and flexible cabling needs of a semiconductor company’s office environment.

✅ Quiet and Comfortable: The patented PVC vibration-dampening pad design combined with an IIC 58 acoustic insulation rating (ASTM E492-09) effectively blocks impact sound transmission, creating a quiet and focused office environment.

✅ Easy Maintenance: Each panel weighs only 13.5kg and can be easily lifted by one person for void inspection and maintenance. If individual carpet tiles are damaged, they can be replaced one at a time, keeping maintenance costs extremely low.

---
