HUIYA inorganic cement floor is made of No.42.5 cement,40pcs barbed wire Φ2.5mm, Inorganic fiber, silicate, mineral fiber, quartz sand, etc, once molded after high pressure. It is unnecessary to cover by steel plate and very comfortable when walking on the cement’s ground, the walking feeling is close to the actual concrete floor, which can bring about a down-to-earth feel.GRC raised access floor is available to install in indoor office areas.Our inorganic cement floor is made of No.42.5 cement,40pcs barbed wire Φ2.5mm, Inorganic fiber, silicate, mineral fiber, quartz sand, etc,
SYSTEM NAME：

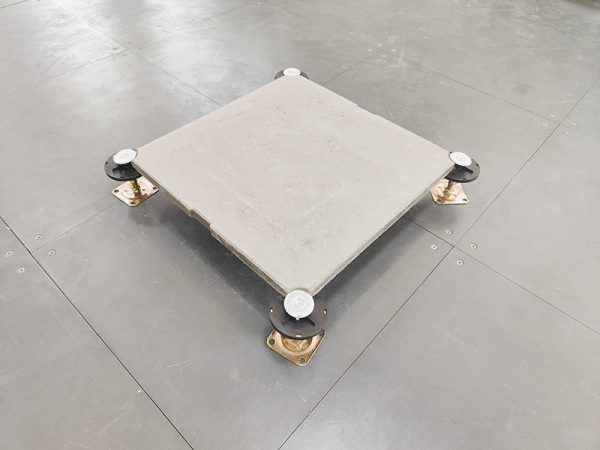

GRC RAISED FLOOR 800LBS（Cement Type)
DESCRIPTION
GRC RAISED FLOOR 800LBS is considered the classic system for commercial environments. It is widely used for office building
COMPLIANT STANDARDS
CISCA Recommended Test Procedures for Access Floors (2007）
SIZE 500mm x 500mm
DEPTH 26mm
CORE Cementitious Compound
Bar-mat reinforcement
2.5mm diameter Round Steel Bar Inside Cerment.
Contact Huiya Email:[email protected] WhatsApp:+86 18018280738
If Customer need Specialized Raised Floor Pedestal，Floor Finish Height(FFH=60mm-150mm), Huiya Raised Floor Factory Recommend GRC Raised Floor Understructure Method.You can Contact Huiya Factory Sale For Further Communication.
| Pedestal Name | Steel Flat Head Pedestal（Low Profile Type） |
|---|---|
| Height | FFH60-300mm |
| Pedestal Head | 70（Length）x70（Width）x3mm（thickness）Steel Plate |
| Base Plate | 80(Length)x80(Width)x1.8mm（thickness）Steel Plate |
| Threaded Solid Rod | M16 |
| Surface | Galvanized Steel |
