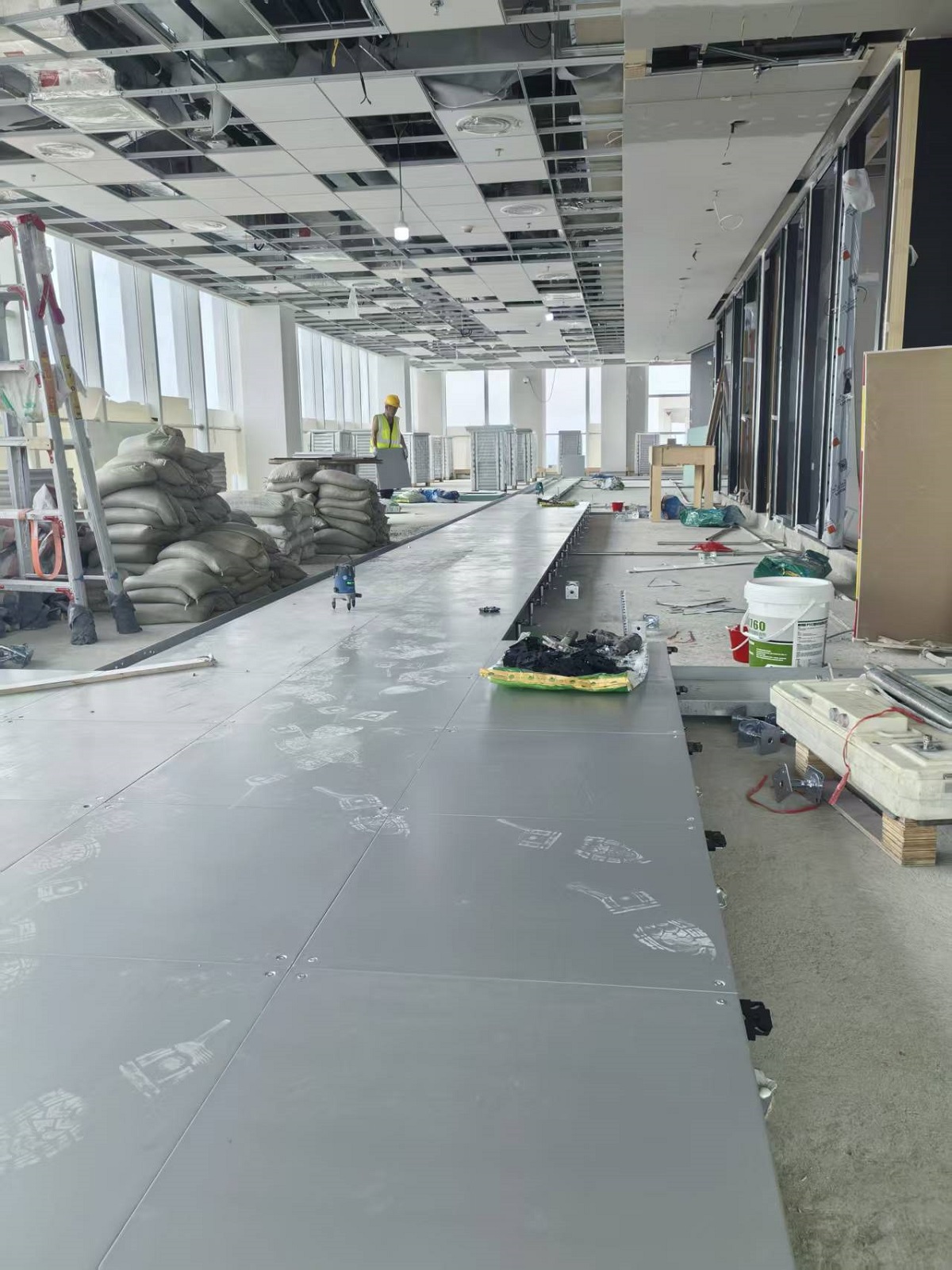

15,000㎡ of HUIYA ECS1000 Encapsulated Galvanized Steel Calcium Sulphate Raised Access Floor was deployed at China Merchants Bank Shenzhen Financial Innovation Tower A, providing a high-load, high-fire-resistance, silent, and eco-friendly integrated ground solution for a bank-grade financial office environment. With this project, HUIYA has officially become the strategic centralized procurement and installation partner for raised access flooring across all China Merchants Bank construction projects nationwide.
Project Overview
- Project Name: China Merchants Bank Shenzhen Financial Innovation Tower A – Raised Access Floor Installation Project
- Project Address: No. 18 Huihua Road, Shanxia Community, Pinghu Subdistrict, Longgang District, Shenzhen
- Installation Period: December 23, 2025 – February 8, 2026
- Installation Area: 15,000 ㎡
- Product Used: HUIYA ECS1000 Encapsulated Galvanized Steel Calcium Sulphate Raised Access Floor
- End User: China Merchants Bank Co., Ltd.
- Project Type: Banking & Financial Office Space
- Partnership Nature: Strategic centralized procurement cooperation for raised access flooring across all CMB construction projects
I. Strategic Partnership Milestone · HUIYA Officially Becomes CMB’s Centralized Procurement Strategic Partner
If the 15,000 square meters of precision installation represents the tangible engineering outcome of this project, then the strategic partnership behind it represents a significantly deeper expansion of HUIYA’s service footprint within China’s financial industry.
In June 2025, after rigorous qualification audits, technical product reviews, and comprehensive capability evaluations, Changzhou HUIYA Decoration Materials Co., Ltd. and China Merchants Bank Co., Ltd. officially signed the Framework Agreement on Centralized Procurement, Supply, and Installation of Raised Access Flooring for All CMB Construction Projects (Agreement No.: ZHGCB-QH-003-2025 [CMBGCB-CG-2024007(QH)]), with the cooperation period extending to June 3, 2027.
This marks HUIYA’s official designation as the centralized procurement strategic supplier of raised access floor systems for all China Merchants Bank construction projects nationwide, a major cooperation milestone for HUIYA within China’s large-scale commercial banking ecosystem. The 15,000 ㎡ installation at Shenzhen Financial Innovation Tower A is among the first batch of flagship projects executed under this framework, holding significant demonstrative value for HUIYA’s nationwide rollout across CMB’s branches, sub-branches, and office buildings.
About China Merchants Bank · A Leading Joint-Stock Commercial Bank in China
China Merchants Bank (CMB) was founded in 1987 and is headquartered in Shenzhen, Guangdong Province. It was the first joint-stock commercial bank in mainland China to be wholly owned by corporate entities, and the first pilot bank for state-led banking reform from outside the existing system.
After nearly four decades of development, CMB has grown into one of China’s most influential joint-stock commercial banks, achieving industry-leading brand recognition in retail banking, private banking, wealth management, and fintech. CMB has been listed in the Fortune Global 500 for many consecutive years and is one of China’s banking-sector benchmarks for digital transformation. As a financial institution that demands the highest standards in office environment quality and safety, CMB applies rigorous technical specifications and quality standards to building finishing materials and engineering auxiliary materials in its office buildings, business outlets, and data centers nationwide. HUIYA’s success in passing CMB’s centralized procurement entry threshold is a comprehensive endorsement of the technical strength, manufacturing quality control, and project delivery capability of HUIYA’s products.
🏢 Project Carrier · CMB Shenzhen Financial Innovation Tower A

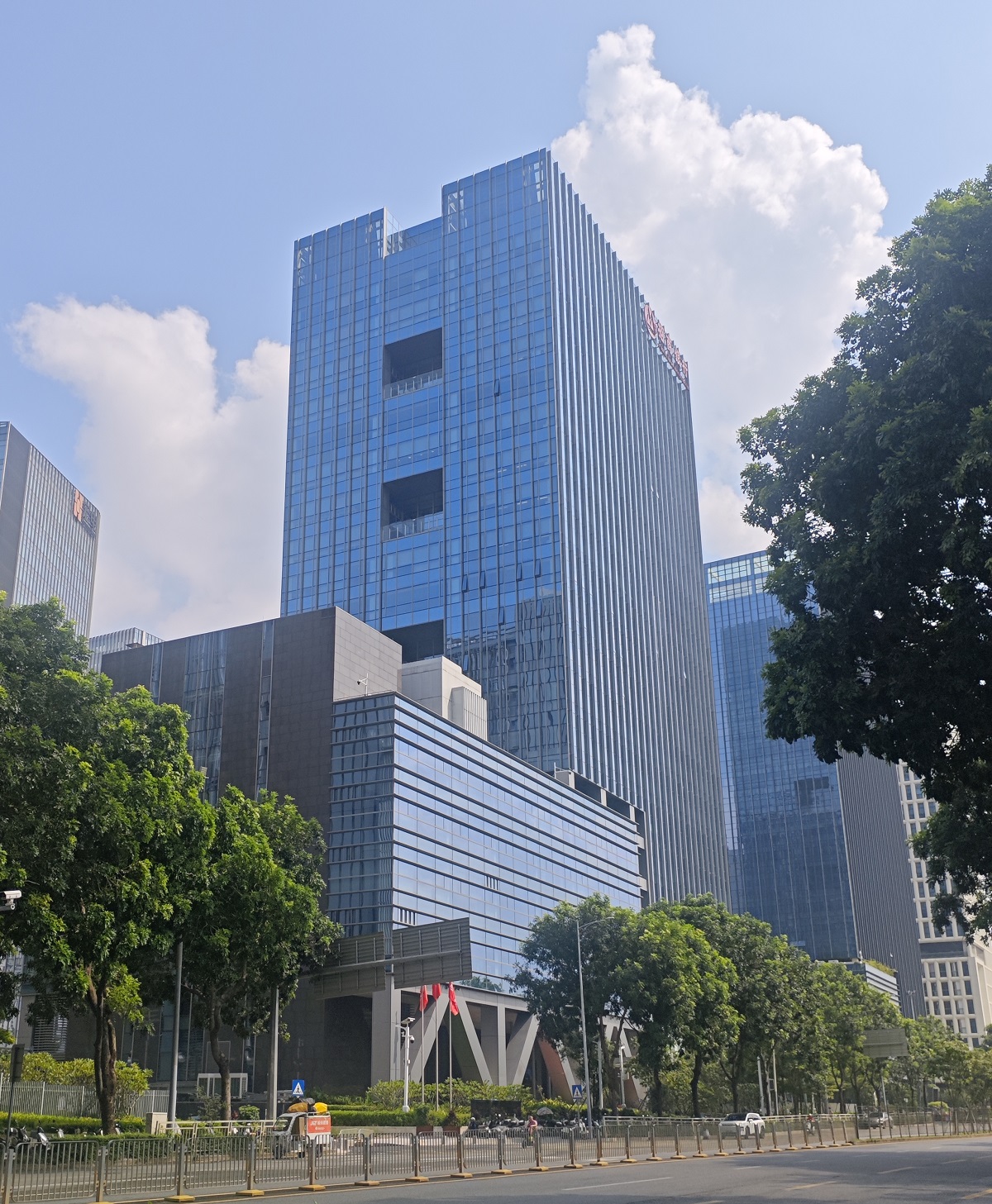

The destination of this 15,000 ㎡ raised access floor installation – CMB Shenzhen Financial Innovation Tower A – is a flagship infrastructure project within CMB’s fintech strategic layout, and one of the first key delivery projects under the newly signed centralized procurement framework agreement. It carries strong demonstrative weight for HUIYA’s subsequent comprehensive rollout across CMB’s nationwide branch and office construction projects.
📌 Project Location · Pinghu Financial & Business Core Zone, Longgang
The project sits at No. 18 Huihua Road (No. 11 Shankeng 3rd Road), Shanxia Community, Pinghu Subdistrict, Longgang District, Shenzhen — at the heart of the Pinghu Financial & Business Core Zone, at the intersection of Zhonghuan Avenue and Huihua Road. The site is adjacent to the Pinghu Station of Shenzhen Metro Line 10 and surrounded by major arterial roads, connecting to Shenzhen’s central urban districts and the city’s “Eastward Expansion” transportation network, offering exceptional locational advantages.
📌 Project Scale · A Landmark Building in the Pinghu District
CMB Shenzhen Financial Innovation Tower forms part of the CMB Financial Innovation Base, with total investment of approximately RMB 1.6 billion and consisting of two main buildings, A and B. The project spans approximately 130,000 ㎡ of total floor area, with the main tower rising approximately 150 m across 38 floors, making it one of the urban landmark buildings of the Pinghu district, with an architectural image highly aligned with CMB’s brand position as a top-tier domestic financial institution.
📌 Functional Positioning · CMB Fintech R&D Center

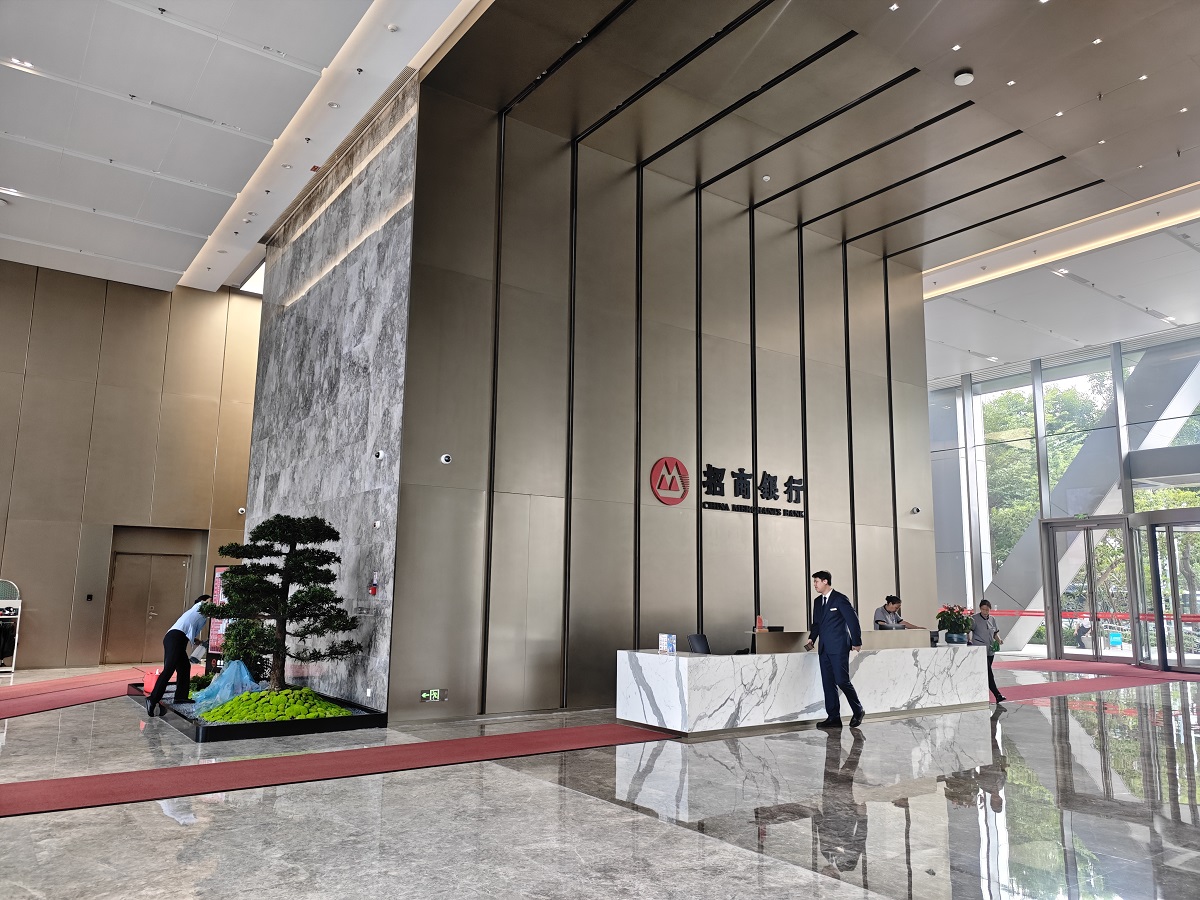

Tower A houses the core functions of the CMB Fintech R&D Center, digital office spaces, and the financial innovation base, positioned as a high-end office and R&D mixed-use space. It is planned to host CMB-affiliated tech subsidiaries such as CMB Wing Lung Information Technology, integrating customer service, technology R&D, and data center operations. This dual “finance + technology” positioning places composite requirements on the raised access floor system, in static load capacity, cabling flexibility, fire safety, and environmental stability, that far exceed standard office scenarios.
📌 Project Cadence · Critical Delivery Milestones
As of 2026, several floors of Tower A remain in fit-out and MEP deepening stages. The 15,000 ㎡ deployment of HUIYA ECS1000 encapsulated galvanized steel calcium sulphate raised access flooring takes place at this critical delivery node, undertaking the core construction of the foundational infrastructure layer of the fintech office space.
II. Project Requirements & Challenges · Core Demands of a Bank-Grade Financial Office Space
As a critical financial office carrier for China Merchants Bank, Shenzhen Financial Innovation Tower A imposes professional technical requirements on the floor system that far exceed those of ordinary office spaces:
🔸 ① Stable load-bearing for high-density financial business equipment
Bank office spaces deploy a large number of computer terminals, encryption devices, dedicated printers, file cabinets, and office furniture. The floor system must provide stable concentrated and uniform load capacity, remaining undeformed and free of subsidence over long-term use.
🔸 ② Strict fire safety standards
As a financial workplace, fire-resistance grading for finish materials is heavily regulated. The raised access floor must offer outstanding fire performance and emit no toxic gases under fire conditions, protecting the lives of office personnel.
🔸 ③ Flexible management of complex financial network and power cabling
Banking operations demand exceptional network stability and security. Office spaces involve massive volumes of data network cables, power cables, dedicated communication lines, and financial encryption circuits. The raised access floor must provide ample sub-floor cabling space supporting layered routing, organized management, and flexible adjustment.
🔸 ④ A quiet and comfortable office environment
Bank office spaces have stringent acoustic requirements; the floor system must produce no noise underfoot to avoid disrupting employee focus and customer communication.
🔸 ⑤ Green environmental compliance and indoor air quality
As a long-term densely occupied indoor environment, control over formaldehyde and VOC emissions is highly stringent, all materials must comply with national green building material standards.
🔸 ⑥ High-precision flatness and surface compatibility
The raised access floor will be covered with premium carpet or other decorative finishes, requiring high substrate flatness to ensure consistent results across large installation areas.
To address these six core requirements, the project team, after rigorous product comparison and technical evaluation, selected the HUIYA ECS1000 Encapsulated Galvanized Steel Calcium Sulphate Raised Access Floor as the core ground system, paired with Japanese KONISHI KU928C-X pedestal adhesive as the standard auxiliary material solution.
III. Core Product · HUIYA ECS1000 Encapsulated Galvanized Steel Calcium Sulphate Raised Access Floor
HUIYA-ECS (1000-1250) Encapsulated Galvanized Steel Calcium Sulphate Raised Access Floor is a high-performance encapsulated galvanized steel calcium sulphate raised access floor system developed specifically for premium office buildings, banks and financial institutions, and commercial office spaces. The product employs a high-density calcium sulphate substrate (density 1,600 kg/m³) as its core load-bearing base, encapsulated externally with galvanized steel sheets coated with anti-rust varnish — combining the dimensional stability of calcium sulphate with the strength and protection of galvanized steel. ECS1000 is widely recognized as a premium raised access floor product among international banking institutions and high-end commercial office spaces.
ECS1000 Core Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Dimensions | 600 mm × 600 mm |
| Panel Thickness | 30 mm |
| Panel Substrate | High-density calcium sulphate (1,600 kg/m³) |
| Galvanized Steel Sheet Thickness | 0.3 / 0.3 mm (top + bottom encapsulation) |
| Surface Treatment | Galvanized steel + anti-rust varnish coating |
| Uniform Load | 18.0 kN/m² |
| Concentrated Load | 4.5 kN |
| Panel Unit Weight | 18.5 kg |
| Tolerance Precision | ±0.25 mm; diagonal flatness tolerance ±0.5 mm |
| Pedestal System | Adjustable steel pedestals, height 55 mm – 2,000 mm |
| Acoustic Gasket | Flame-retardant acoustic gasket on every pedestal |
Advantages of ECS1000 · The Ideal Choice for Bank Financial Offices
✅ Advantage 1: Outstanding fire performance with zero toxic emissions
With high-density calcium sulphate as its core substrate, a material inherently fire-resistant, ECS1000 does not combust or emit toxic gases under fire conditions, providing bank-grade fire safety for financial office spaces and fully meeting stringent financial-sector requirements for finish materials.
✅ Advantage 2: High load capacity for intensive bank office use
ECS1000 offers 18.0 kN/m² uniform load capacity and 4.5 kN concentrated load capacity, stably supporting server cabinets, encryption devices, safes, file cabinets, and office furniture in bank office environments, without long-term deformation or sagging.
✅ Advantage 3: Composite structure of calcium sulphate + galvanized steel encapsulation
The high-density calcium sulphate substrate (1,600 kg/m³) provides excellent dimensional stability, impact resistance, and acoustic performance; the outer galvanized steel encapsulation with anti-rust varnish further enhances strength, corrosion resistance, and moisture resistance, keeping ECS1000 performing reliably across varied environmental conditions.
✅ Advantage 4: Eco-friendly and healthy, compliant with green material standards
ECS1000 contains no formaldehyde, no radioactive substances, and emits no harmful volatile compounds — meeting national green building material standards. In long-term densely occupied bank office environments, it effectively safeguards indoor air quality and the health of office personnel.
✅ Advantage 5: High-precision flatness for diverse surface finishes
Manufactured with precision tooling, ECS1000 maintains a tolerance of ±0.25 mm and diagonal flatness tolerance of ±0.5 mm, providing a high-quality base for carpets, PVC, stone-plastic, and other decorative surface finishes, ensuring uniform aesthetic results across large-scale installations.
✅ Advantage 6: Flame-retardant acoustic gaskets + adjustable pedestals – silent and stable
Each steel pedestal is fitted at the top with a flame-retardant acoustic gasket that effectively reduces friction noise between metal pedestal and galvanized steel panel; pedestal height adjusts from 55 mm to 2,000 mm, accommodating diverse sub-floor height requirements and supporting the complex cabling and conduit demands of bank office spaces.
✅ How ECS1000 Responds to the Core Requirements of the CMB Project
| Project Requirement | ECS1000 Response |
|---|---|
| ① High load capacity | 18.0 kN/m² uniform load + 4.5 kN concentrated load — comfortably handles bank office equipment |
| ② Fire safety | Calcium sulphate substrate + galvanized steel encapsulation — no toxic gas emission under fire |
| ③ Flexible cabling | Adjustable pedestal height (55–2,000 mm) — provides ample sub-floor cabling space |
| ④ Acoustic comfort | Flame-retardant acoustic gaskets + KONISHI KU928C-X elastic adhesive — comprehensive noise elimination |
| ⑤ Eco-friendliness | No formaldehyde, no radioactive substances — compliant with national green building material standards |
| ⑥ High-precision flatness | ±0.25 mm tolerance — ideal substrate for surface finish layers |
Proven Track Record · ECS1000’s Application Heritage in High-End Industrial and Office Scenarios
HUIYA ECS1000 encapsulated galvanized steel calcium sulphate raised access flooring is no stranger to high-standard construction projects. Prior to the CMB Shenzhen Financial Innovation Tower A project, ECS1000 had already been deployed at scale in several flagship engineering projects with stringent ground-system requirements. A representative example:
As Phase II of Siemens’ intelligent digital factory strategy in China, the project imposed world-class technical standards on the raised access floor system in load stability, anti-static performance, long-term durability, and adaptability to composite operating conditions in smart manufacturing environments. Leveraging the structural advantages of encapsulated galvanized steel combined with calcium sulphate composite substrate, HUIYA ECS1000 achieved a unified delivery of high-precision flatness and stable load-bearing across 5,500 ㎡ of continuous large-area installation, fully validating the comprehensive performance of this product in the smart factory scenarios of multinational manufacturing leaders.
IV. Professional Auxiliary Material · KONISHI KU928C-X Raised Access Floor Pedestal Adhesive
The entire 15,000 ㎡ pedestal installation in the CMB Shenzhen Financial Innovation Tower project utilized Japanese KONISHI KU928C-X professional pedestal adhesive as the standard fixing solution, ensuring the stability, acoustic performance, and environmental compliance of the entire ground system from the auxiliary-material level.
About KONISHI Japan · A Bonding Expert Spanning Three Centuries
KONISHI Co., Ltd. was founded in 1870 (Meiji Year 3) and has more than 155 years of history, making it one of Japan’s oldest and largest professional adhesive manufacturers. KONISHI is currently listed on the Tokyo Stock Exchange (Securities Code: 4956), a true century-old publicly traded enterprise. Its “BOND” brand enjoys widespread recognition in the construction adhesive markets of Japan and Asia.
Why Bank Office Raised Access Flooring Needs KONISHI KU928C-X
🔹 Pain Point 1: Eliminating walking noise on the raised floor
Bank office spaces have stringent acoustic standards. Conventional raised access floor pedestals rely solely on gravity and panel compression for fixation; under long-term foot-traffic vibration, hard contact between metal pedestals and concrete substrates produces “creaking” noises that severely impact office experience. KU928C-X’s elastic bonding layer absorbs impact forces from the floor surface, effectively buffering micro-vibrations between metal pedestal and slab — eliminating “metal impact sound” at its source and creating a quiet, comfortable working environment for bank offices.
🔹 Pain Point 2: Preventing pedestal loosening and sinking
Under long-term foot-traffic vibration, pedestals may experience nut loosening or base sinking. KU928C-X’s high-strength bonding force (averaging 2,750 N) firmly anchors pedestal bases to the substrate, effectively preventing metal pedestal vibration and nut loosening, ensuring the long-term stability and reliability of the raised access floor system.
🔹 Pain Point 3: Filling minor floor gaps to prevent pedestal wobble
Concrete substrates typically exhibit minor surface irregularities. KU928C-X adhesive fills the small gaps between metal bases and rough slabs, achieving 100% contact-surface engagement and uniform pressure distribution, preventing pedestal wobble caused by partial suspension at the source.
🔹 Pain Point 4: Blocking sound transmission paths
The elastic adhesive effectively interrupts sound waves traveling through solid structures, improving floor-to-floor impact-sound insulation rating (such as Japan’s commonly used L-value standard), enhancing the acoustic environment between bank floor levels.
Workmanship Highlight · Standardized Adhesive Application

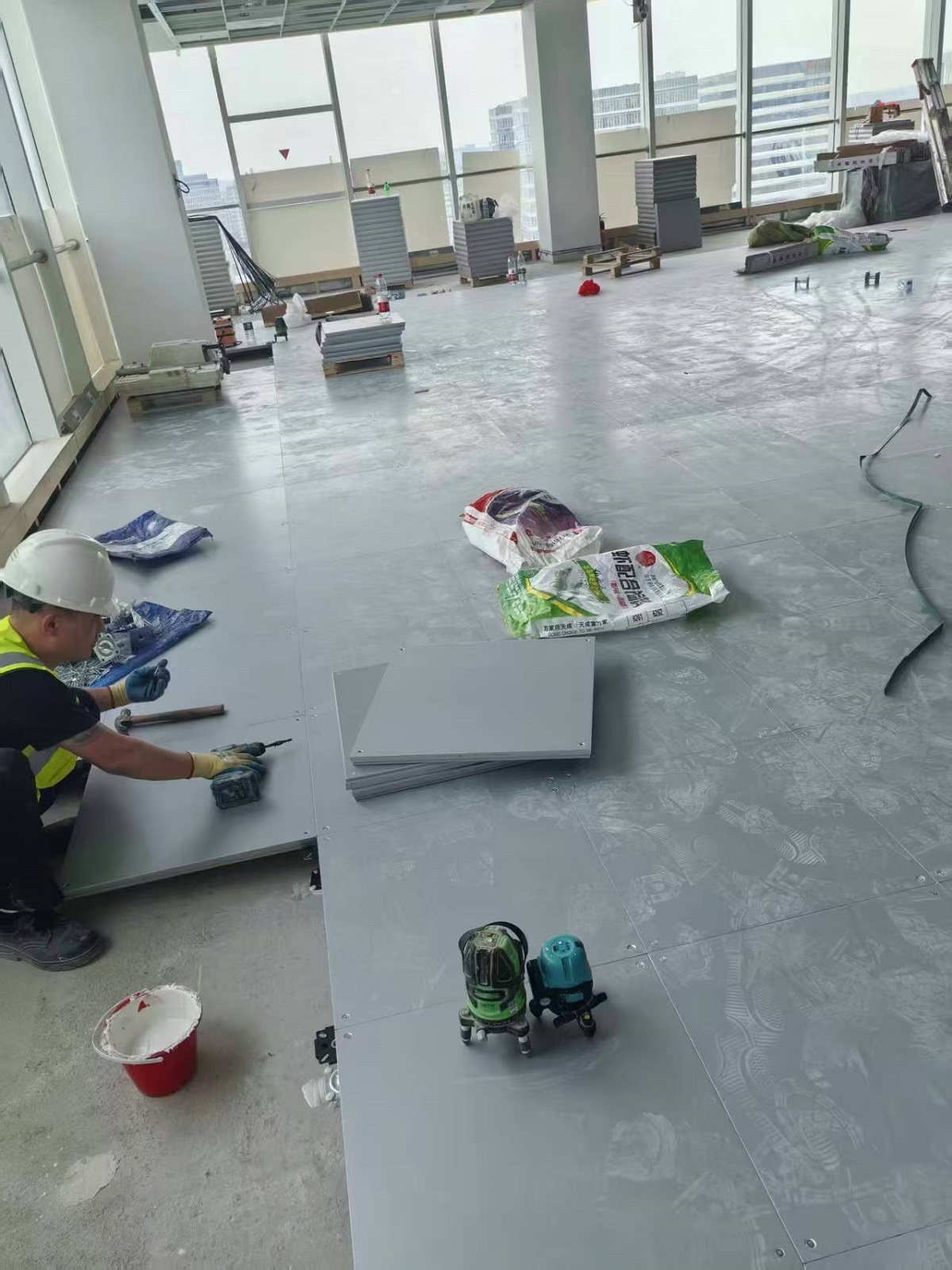

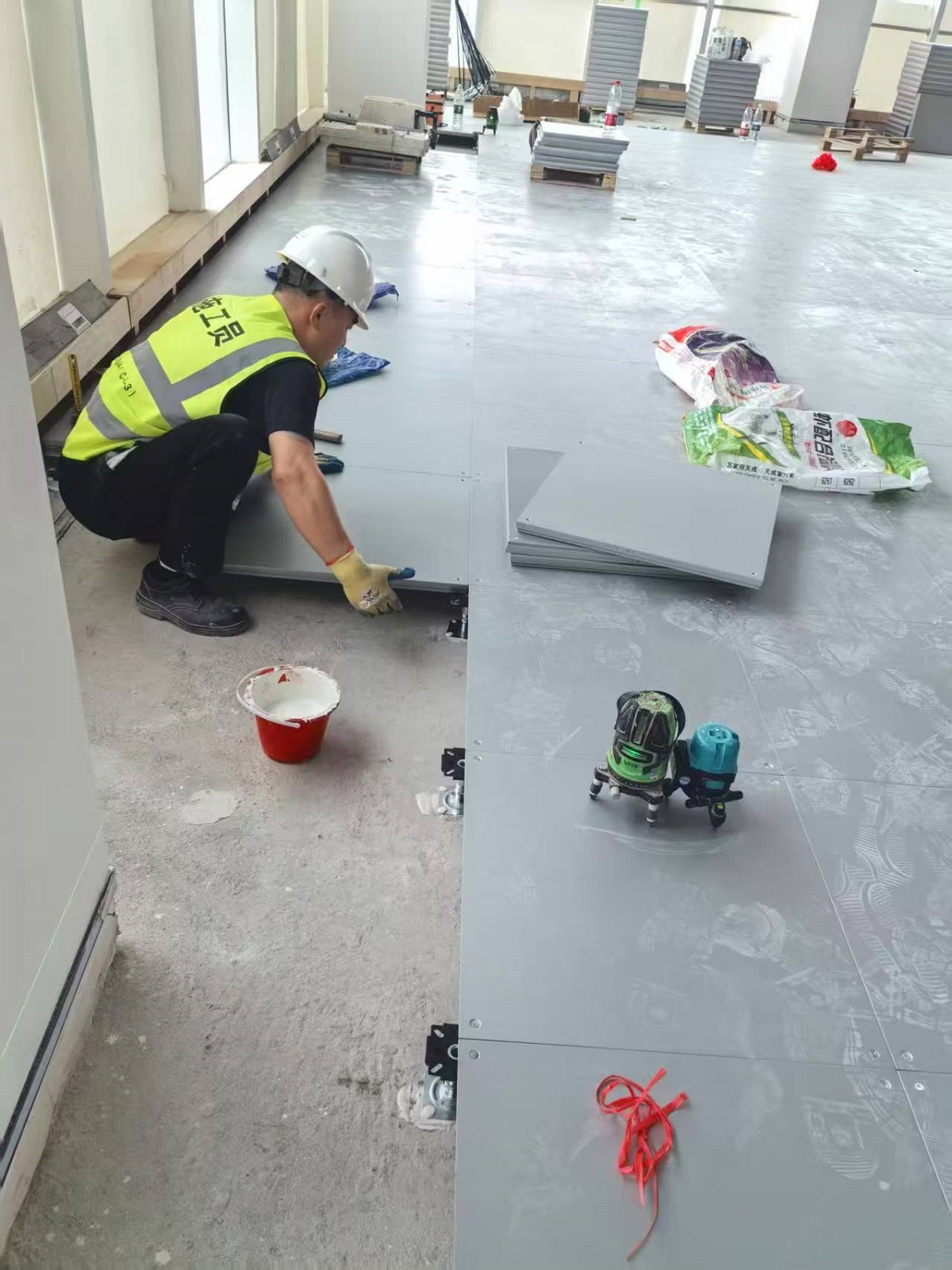

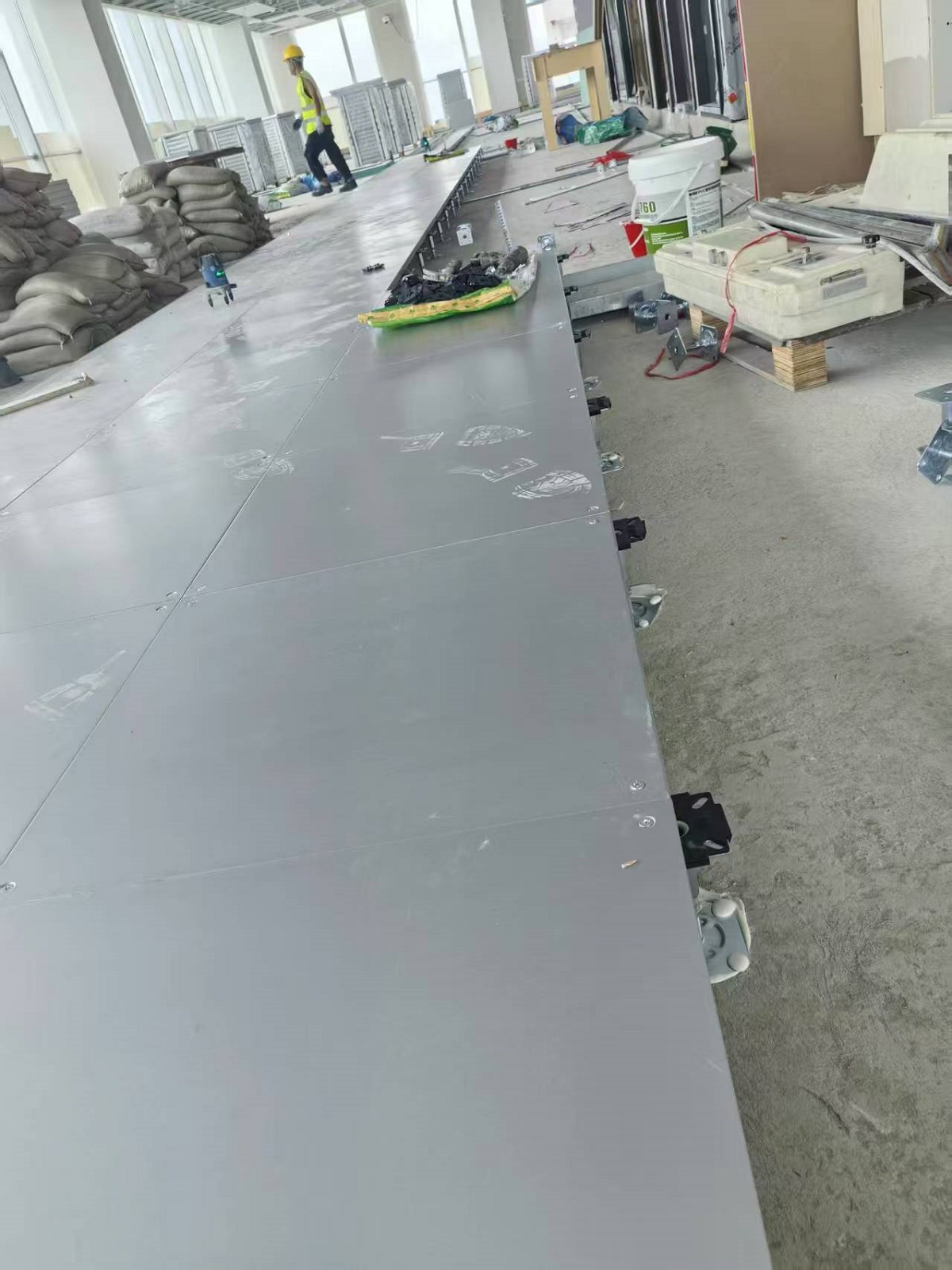

After completing pedestal leveling, the installation team meticulously applied KONISHI KU928C-X adhesive to each pedestal base across all 15,000 ㎡ of the project, elevating “pedestal adhesive” from a “optional auxiliary” in traditional practice to a bank-grade standardized workmanship requirement. This fully reflects HUIYA’s strict control of engineering quality details under the CMB centralized procurement framework, setting a benchmark for standardized installation across CMB’s other future construction projects nationwide.
V. Project Value · Multidimensional Articulation Across Product Application Depth and Corporate Strategic Development
Looking back at the 15,000 ㎡ precision installation, this project’s significance extends far beyond a single engineering delivery. From the technical depth of product application to the long-term layout of corporate strategic development, the project presents multidimensional comprehensive value.
✅ Strategic Value · HUIYA Officially Joins China’s Mainstream Commercial Banking Supply Chain
As one of China’s leading joint-stock commercial banks, China Merchants Bank applies a supplier qualification system known for rigorous credential audits, technical product reviews, and comprehensive capability evaluations. HUIYA’s official admission as a strategic raised access floor supplier through the centralized procurement framework agreement signifies that HUIYA has passed bank-grade supply chain assessment across multiple dimensions, product standardization, manufacturing quality control, scaled delivery capability, and nationwide service network. This partnership opens an important pathway for HUIYA to deepen its presence in the banking & finance vertical of the raised access floor industry, while accumulating reference precedents and reputational endorsement for engagement with other major financial institutions.
✅ Product Value · ECS1000’s Technical Suitability for Banking Scenarios Is Deeply Validated
The comprehensive performance demands of bank office raised access floors are among the most stringent in commercial office scenarios, handling long-term static loads from encryption devices, safes, and server cabinets while meeting strict standards for fire safety, network cabling, acoustic comfort, and indoor air quality. The ECS1000 encapsulated galvanized steel calcium sulphate raised access floor, with the fire resistance and dimensional stability of calcium sulphate substrate, the strength protection of galvanized steel encapsulation, the load capacity of 18.0 kN/m² uniform load and 4.5 kN concentrated load, and ±0.25 mm tolerance precision, achieved full-dimensional technical adaptation to bank-grade usage scenarios in this project. The 15,000 ㎡ real-world deployment provides quantifiable, replicable engineering evidence for ECS1000’s broader promotion in finance, government, and corporate headquarters scenarios.
✅ Workmanship Value · The “Raised Floor + Professional Auxiliaries” Standardized Construction Model Fully Applied
This project elevated the use of KONISHI KU928C-X pedestal adhesive from “optional auxiliary” in traditional practice to a standardized installation requirement, applying adhesive to every pedestal base across 15,000 ㎡. The full deployment of this workmanship standard not only resolves the industry’s long-standing pain points of “walking noise” and “cumulative pedestal misalignment” at the engineering level, but also demonstrates HUIYA’s systematic control over engineering quality details at the management level. The “main product + auxiliary material + workmanship” trinity standardized installation paradigm is becoming the core competitive service capability of HUIYA in bank-grade and headquarters-grade premium projects.
✅ Synergy Value · Premium Sino-Japanese Manufacturing Resources Jointly Manifested in Financial Construction
The project brings together the high-performance ECS1000 encapsulated galvanized steel calcium sulphate raised access floor — a product of Chinese intelligent manufacturing — and the F☆☆☆☆-grade adhesive from Japan’s century-old publicly traded KONISHI Corporation. The two are highly complementary in product positioning, performance characteristics, and environmental standards. This cross-border synergy of premium resources reflects CMB’s comprehensive consideration as an internationalized financial institution regarding material quality, while showcasing HUIYA’s mature service capability in global supply chain integration and technical resource synergy — precisely the comprehensive value that high-end project clients prioritize when selecting raised access floor suppliers.
✅ Demonstrative Value · A Replicable Engineering Template for CMB’s Nationwide Construction Projects
The centralized procurement framework agreement extends through June 2027, covering CMB construction projects nationwide. As one of the first batch of flagship projects under this framework, the experience and data accumulated at Shenzhen Financial Innovation Tower A — across product selection, construction organization, workmanship standards, delivery cadence, and quality acceptance — will serve as a replicable, scalable engineering template for raised access floor system construction across CMB’s branches, sub-branches, data centers, and office buildings nationwide. This model of “starting from a pivotal point to achieve full-scale coverage, accumulating from individual projects to a complete system” is the core methodology HUIYA applies to long-term service of large group clients.
✅ Industry Value · Driving the Raised Access Floor Industry Toward “Financial-Grade” Specialization
As China’s financial industry continues to elevate its standards in office space quality, information security, and green compliance, raised access flooring — as the foundational infrastructure carrying financial business operations — faces new directions in technical standards and service norms. Through the CMB project, HUIYA has crystallized “bank-grade raised access floor system” product configuration standards, installation workmanship norms, and quality acceptance requirements into exportable industry know-how, providing meaningful demonstrative value for the industry’s specialized deepening into high-standard financial, governmental, and headquarters office subsectors.
🔗 Related Financial Sector Cases · HUIYA’s Service Heritage in Bank-Grade Construction Scenarios
The CMB project is by no means an isolated case for HUIYA in the financial industry. Across years of project experience, HUIYA has achieved mature application of raised access floor systems in numerous banking, securities, and financial institution construction projects. Representative cases include:
- 🏛️ Shanghai Huanchuang Center Financial Office Raised Access Floor Project
- 🏛️ Shenzhen Qianhai Kingboard Group Global Headquarters Tower Raised Access Floor Project
The product adaptation experience and installation service standards accumulated in the above projects form an important service foundation for the CMB centralized procurement partnership, while providing a referenceable engineering experience system for the high-quality delivery of the Shenzhen Financial Innovation Tower A project.
HUIYA · Trusted Raised Access Floor System Supplier for China’s Banking & Financial System
The successful completion of the CMB Shenzhen Financial Innovation Tower A ECS1000 raised access floor installation is a flagship case for HUIYA in China’s large commercial banking financial office sector. The 15,000 ㎡ precision installation not only validated the bank-grade performance of ECS1000 encapsulated galvanized steel calcium sulphate raised access flooring in fire safety, stable load-bearing, and green compliance, but also marks HUIYA’s official entry into the strategic supplier ranks for raised access flooring in China’s large joint-stock commercial banks.
From the F☆☆☆☆-grade adhesive of Japan’s century-old publicly traded KONISHI Corporation, to the high-performance ECS1000 encapsulated galvanized steel calcium sulphate raised access floor of Chinese intelligent manufacturing, this project brought together the finest manufacturing resources of China and Japan to deliver a reliable, silent, fire-safe, eco-friendly bank-grade office ground system for one of China’s leading joint-stock commercial banks.
Changzhou HUIYA Decoration Materials Co., Ltd. (HUIYA) is a professional provider of raised access floor system solutions in China, focused on the R&D, manufacturing, and sales of high-end raised access floor products, including SC series steel cementitious raised access floors, ECS / CSL series calcium sulphate raised access floors, and GRC inorganic cement raised access floors. HUIYA’s products are widely deployed in international data centers, Fortune 500 corporate headquarters, large commercial banks, premium commercial office buildings, semiconductor factories, AI industrial parks, and other high-standard projects.
If your banking institution, office tower, commercial space, or data center project also requires raised access flooring, please contact HUIYA. We will provide professional product selection advice and customized solutions.
📞 Hotline: +86 18706128688
🌐 Official Website: www.huiyainc.com
📧 Email: [[email protected]]
